DC0011/15-TI900-0.12-2A

Active

t-Global Technology

THERM PAD 21.84MMX18.79MM W/ADH

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 21.84MMX18.79MM W/ADH

Technical Specifications

Parameters and characteristics for this part

Part	Adhesive	Backing, Carrier	Type	Shape	Color	Material	Outline [x]	Outline [y]	Thickness [x]	Thickness [x]	Usage	Thermal Conductivity	Shelf Life	Thickness	Thickness	Shelf Life Start
t-Global Technology DC0011/15-TI900-0.12-2A	Adhesive - Both Sides	Viscose	Die-Cut Pad Sheet	Rectangular	White	Silicone	21.84 mm	18.79 mm	0.005 in	0.127 mm	TO-220	1.8 W/m-K	24 Months
t-Global Technology DC0011/15-TG-A482K-0.1-0			Die-Cut Pad Sheet	Rectangular	Red	Silicone	21.84 mm	18.79 mm			TO-220	2.3 W/m-K	24 Months	0.1 mm	0.0039 in	Date of Purchase
t-Global Technology DC0011/15-TI900-0.12-0		Viscose	Die-Cut Pad Sheet	Rectangular	White	Silicone	21.84 mm	18.79 mm	0.005 in	0.127 mm	TO-220	1.8 W/m-K	24 Months

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 0.82

General part information

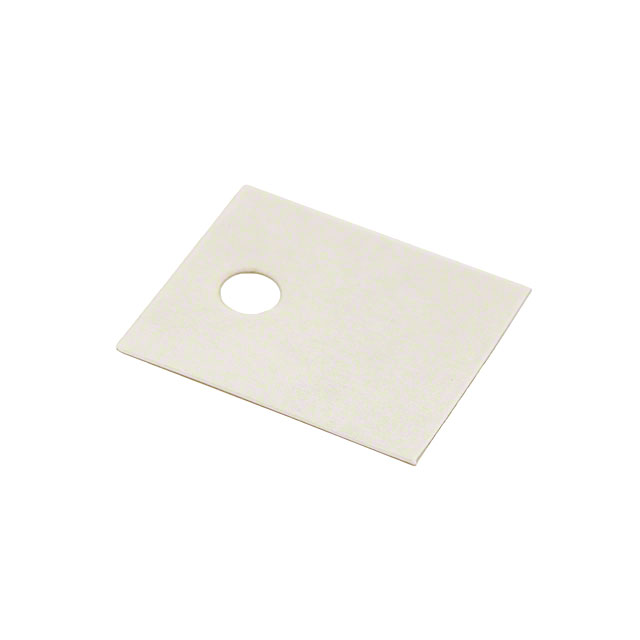

Thermal Pad White 21.84mm x 18.79mm Rectangular Adhesive - Both Sides
