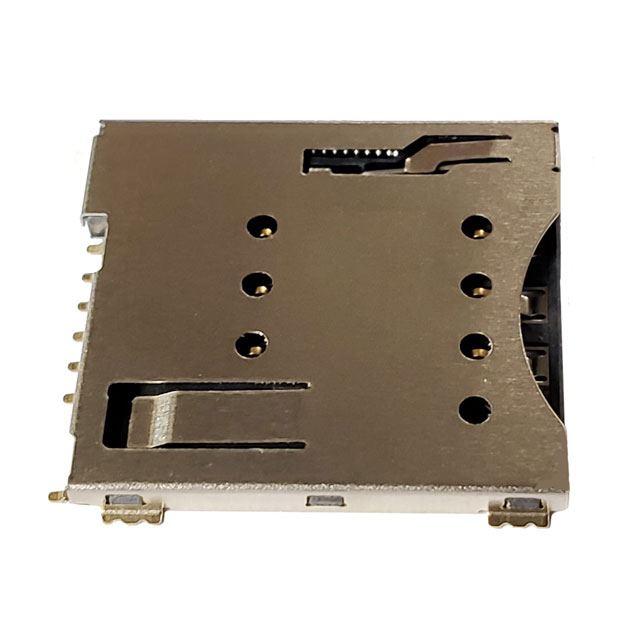

MSCCP-D-06-SG-SW-T/R
ActiveAdam Tech
MICRO SIM CARD CONNECTOR, 6 PIN, GOLD PLATED
Deep-Dive with AI
Search across all available documentation for this part.
MSCCP-D-06-SG-SW-T/R
ActiveAdam Tech
MICRO SIM CARD CONNECTOR, 6 PIN, GOLD PLATED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSCCP-D-06-SG-SW-T/R |
|---|---|
| Card Type | Micro SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Switch |
| Height Above Board | 0.059 in |
| Height Above Board | 1.5 mm |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 (6 + 2) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.55 | |
| 10 | $ 2.71 | |||
| 25 | $ 2.45 | |||
| 50 | $ 2.26 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.90 | |||
| 500 | $ 1.77 | |||
| Digi-Reel® | 1 | $ 3.55 | ||
| 10 | $ 2.71 | |||
| 25 | $ 2.45 | |||
| 50 | $ 2.26 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.90 | |||
| 500 | $ 1.77 | |||
| Tape & Reel (TR) | 1000 | $ 1.65 | ||
| 2000 | $ 1.54 | |||
| 3000 | $ 1.48 | |||
| 5000 | $ 1.41 | |||
| 7000 | $ 1.40 | |||
Description
General part information
MSCCP-D Series
8 (6 + 2) Position Card Connector Micro SIM Surface Mount, Right Angle Gold
