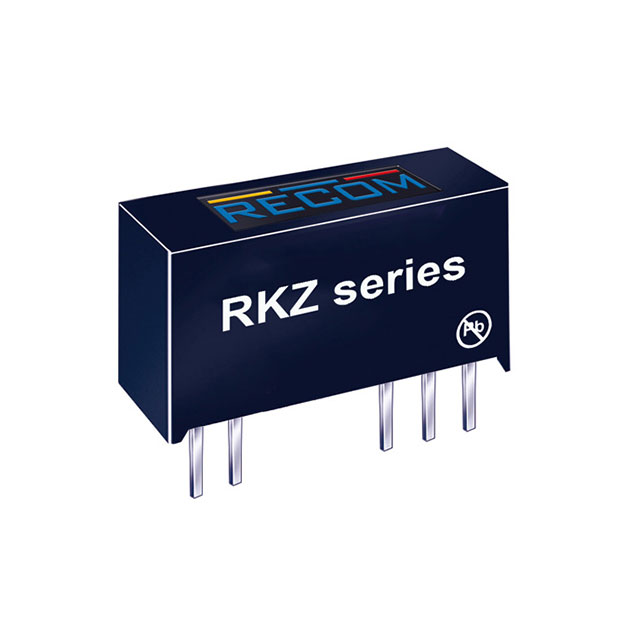

RKZ-121509D/H

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W 12VIN +15/-9V THT 4KV

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RKZ-121509D/H

Applications	ITE (Commercial)
Current - Output (Max)	66 mA, 111 mA
Efficiency	81 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 5 Leads
Power (Watts)	2 W
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.7 mm
Size / Dimension [y]	0.28 in
Size / Dimension [y]	7.1 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	13.2 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Isolation	4000 V
Voltage - Output 1	15 V
Voltage - Output 2	-9 V

RKZ-121509 Series

Isolated DC/DC Converters - Through Hole 2W 05VIN +15/-9V THT SHORT CIRCUIT PROTEC

Part	Features	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Type	Applications	Mounting Type	Power (Watts)	Voltage - Output 2	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Max) [Max]	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
RECOM Power RKZ-0505D/P	SCP	4.5 V	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	Isolated Module	ITE (Commercial) Medical	Through Hole	2 W	-5 V	7-SIP Module 5 Leads	85 °C	-40 °C	5 V	3000 V	5.5 V	2
RECOM Power RKZ-0515S/P	SCP	4.5 V	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	Isolated Module	ITE (Commercial) Medical	Through Hole	2 W		7-SIP Module 4 Leads	85 °C	-40 °C	15 V	3000 V	5.5 V	1	132 mA	84 %
RECOM Power RKZ-051509D/H		4.5 V	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	Isolated Module	ITE (Commercial)	Through Hole	2 W	-9 V	7-SIP Module 5 Leads	85 °C	-40 °C	15 V	4000 V	5.5 V	2		81 %	66 mA 111 mA
RECOM Power RKZ-1205S/HP	SCP	10.8 V	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	Isolated Module	ITE (Commercial) Medical	Through Hole	2 W		7-SIP Module 4 Leads	85 °C	-40 °C	5 V	4000 V	13.2 V	1	400 mA	84 %
RECOM Power RKZ-1212S/P	SCP	10.8 V	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	Isolated Module	ITE (Commercial) Medical	Through Hole	2 W		7-SIP Module 4 Leads	85 °C	-40 °C	12 V	3000 V	13.2 V	1	168 mA	84 %
RECOM Power RKZ-2412D/P	SCP	21.6 V	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	Isolated Module	ITE (Commercial) Medical	Through Hole	2 W	-12 V	7-SIP Module 5 Leads	85 °C	-40 °C	12 V	3000 V	26.4 V	2		84 %		84 mA	84 mA
RECOM Power RKZ-1215S/P	SCP	10.8 V	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	Isolated Module	ITE (Commercial) Medical	Through Hole	2 W		7-SIP Module 4 Leads	85 °C	-40 °C	15 V	3000 V	13.2 V	1	132 mA	84 %
RECOM Power RKZ-121509D		10.8 V	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	Isolated Module	ITE (Commercial)	Through Hole	2 W	-9 V	7-SIP Module 5 Leads	85 °C	-40 °C	15 V	3000 V	13.2 V	2		81 %	66 mA 111 mA
RECOM Power RKZ-121509D/H		10.8 V	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	Isolated Module	ITE (Commercial)	Through Hole	2 W	-9 V	7-SIP Module 5 Leads	85 °C	-40 °C	15 V	4000 V	13.2 V	2		81 %	66 mA 111 mA
RECOM Power RKZ-121509D/HP	SCP	10.8 V	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	Isolated Module	ITE (Commercial)	Through Hole	2 W	-9 V	7-SIP Module 5 Leads	85 °C	-40 °C	15 V	4000 V	13.2 V	2		81 %	66 mA 111 mA
