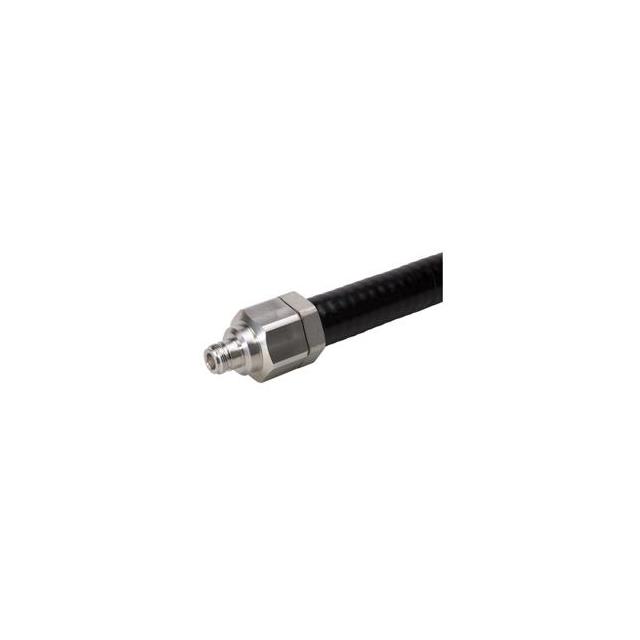

21_N-50-23-43/033_-E

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

21_N-50-23-43/033_-E

Active

Huber+Suhner, Inc.

21_N-50-23-43/033_-E

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	21_N-50-23-43/033_-E

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Clamp
Voltage Rating	1000 VDC

21_N-50 Series

Part	Mating Cycles	Shield Termination	Body Finish	Housing Color	Cable Group	Dielectric Material	Number of Ports	Connector Type	Impedance	Mounting Type	Voltage Rating	Center Contact Plating	Body Material	Connector Style	Center Contact Material	Contact Termination	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Huber+Suhner, Inc. 21_N-50-3-12/133_NE	500	Crimp	White Bronze	Silver	RG-400	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Female Socket Jack	50 Ohms	Free Hanging (In-Line)	1000 VDC	Gold	Brass	N Type	Beryllium Copper	Crimp	11 GHz	-65 ░C	165 °C
Huber+Suhner, Inc. 21_N-50-3-22/133_NH	500	Crimp	White Bronze	Silver	LMR-195	Polytetrafluoroethylene (PTFE)	1	Female Socket Jack	50 Ohms	Free Hanging (In-Line)	1000 VDC	Gold	Brass	N Type	Beryllium Copper	Crimp	11 GHz	-65 ░C	165 °C
Huber+Suhner, Inc. 21_N-50-6-7/12-_NE	500	Clamp	Nickel	Silver		Polytetrafluoroethylene (PTFE)	1	Female Socket Jack	50 Ohms	Free Hanging (In-Line)	1000 VDC	Gold	Brass	N Type	Beryllium Copper	Crimp	18 GHz	-60 °C	165 °C
Huber+Suhner, Inc. 21_N-50-23-43/033_-E	500	Clamp	White Bronze	Silver		Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Female Socket Jack	50 Ohms	Free Hanging (In-Line)	1000 VDC	Silver	Brass	N Type	Bronze	Crimp	11 GHz	-40 °C	85 °C
Huber+Suhner, Inc. 21_N-50-7-32/133_NE	500	Crimp	White Bronze	Silver	LMR-400	Polytetrafluoroethylene (PTFE)	1	Female Socket Jack	50 Ohms	Free Hanging (In-Line)	1000 VDC	Gold	Brass	N Type	Bronze	Crimp	11 GHz	-65 ░C	165 °C
Huber+Suhner, Inc. 21_N-50-9-11/033_-F	500	Crimp	White Bronze	Silver	LMR-500	Polytetrafluoroethylene (PTFE)	1	Female Socket Jack	50 Ohms	Free Hanging (In-Line)	1000 VDC	Silver	Brass	N Type	Bronze	Crimp	6000 MHz	-65 ░C	165 °C
Huber+Suhner, Inc. 21_N-50-0-150/033_-E	500	Clamp	White Bronze	Silver	RG-141	Polytetrafluoroethylene (PTFE)	1	Female Socket Jack	50 Ohms	Free Hanging (In-Line)	1000 VDC	Silver	Brass	N Type	Beryllium Copper	Crimp	6000 MHz	-65 ░C	165 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 35.78

Description

General part information

21_N-50 Series

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
