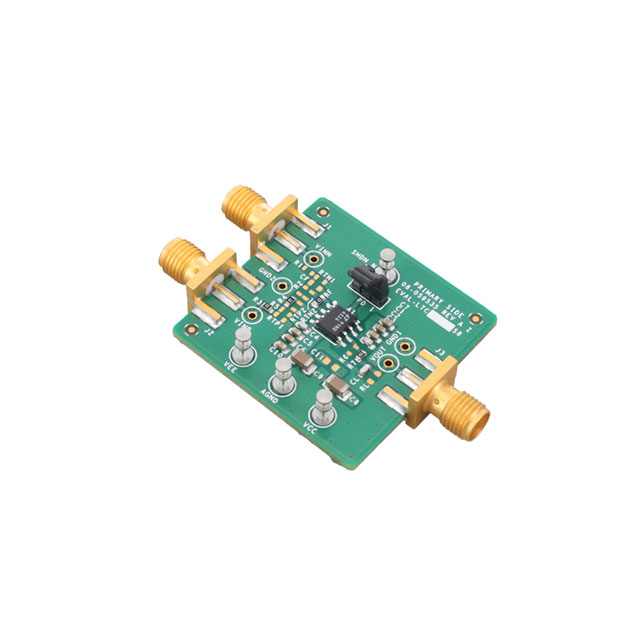

EVAL-LTC6226S8

Active

Analog Devices

EVAL BOARD FOR LTC6226

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EVAL-LTC6226S8

Active

Analog Devices

EVAL BOARD FOR LTC6226

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EVAL-LTC6226S8

-3db Bandwidth	330 MHz
Amplifier Type	General Purpose
Board Type	Fully Populated
Channels per IC	1 - Single
Current - Output / Channel	64 mA
Current - Supply (Main IC)	5.5 mA
Output Type	Single-Ended, Rail-to-Rail
Slew Rate	180 V/µs
Supplied Contents	Board(s)
Utilized IC / Part	LTC6226
Voltage - Supply, Single/Dual (±) [Max]	5.875 V, 11.75 V
Voltage - Supply, Single/Dual (±) [Min]	2.8 V, -1.4 V

LTC6226 Series

1nV/√Hz 420MHz GBW, 180V/µs, Low Distortion Rail-to-Rail Output Op Amps

Part	Supplier Device Package	Gain Bandwidth Product	-3db Bandwidth	Current - Output / Channel	Current - Input Bias	Voltage - Input Offset	Output Type	Slew Rate	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Supply Span (Max) [Max]	Amplifier Type	Mounting Type	Voltage - Supply Span (Min) [Min]	Current - Supply	Current - Supply (Main IC)	Utilized IC / Part	Channels per IC	Board Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Supplied Contents
Analog Devices LTC6226HS8#TRPBF	8-SO	420 MHz	330 MHz	64 mA	8.4 µA	20 çV	Rail-to-Rail	180 V/µs	125 °C	-40 °C	1	8-SOIC	3.9 mm	0.154 in	11.75 V	General Purpose	Surface Mount	2.8 V	5.5 mA
Analog Devices LTC6226HDC#TRMPBF	6-DFN (2x2)	420 MHz	330 MHz	64 mA	8.4 µA	20 çV	Rail-to-Rail	180 V/µs	125 °C	-40 °C	1	6-WFDFN Exposed Pad			11.75 V	General Purpose	Surface Mount	2.8 V	5.5 mA
Analog Devices LTC6226IDC#TRPBF	6-DFN (2x2)	420 MHz	330 MHz	64 mA	8.4 µA	20 çV	Rail-to-Rail	180 V/µs	85 °C	-40 °C	1	6-WFDFN Exposed Pad			11.75 V	General Purpose	Surface Mount	2.8 V	5.5 mA
Analog Devices LTC6226HDC#TRPBF	6-DFN (2x2)	420 MHz	330 MHz	64 mA	8.4 µA	20 çV	Rail-to-Rail	180 V/µs	125 °C	-40 °C	1	6-WFDFN Exposed Pad			11.75 V	General Purpose	Surface Mount	2.8 V	5.5 mA
Analog Devices LTC6226HS6#TRPBF	TSOT-23-6	420 MHz	330 MHz	64 mA	8.4 µA	20 çV	Rail-to-Rail	180 V/µs	125 °C	-40 °C	1	SOT-23-6 Thin TSOT-23-6			11.75 V	General Purpose	Surface Mount	2.8 V	5.5 mA
Analog Devices LTC6226HS6#TRMPBF	TSOT-23-6	420 MHz	330 MHz	64 mA	8.4 µA	20 çV	Rail-to-Rail	180 V/µs	125 °C	-40 °C	1	SOT-23-6 Thin TSOT-23-6			11.75 V	General Purpose	Surface Mount	2.8 V	5.5 mA
Analog Devices LTC6226IS8#PBF	8-SO	420 MHz	330 MHz	64 mA	8.4 µA	20 çV	Rail-to-Rail	180 V/µs	85 °C	-40 °C	1	8-SOIC	3.9 mm	0.154 in	11.75 V	General Purpose	Surface Mount	2.8 V	5.5 mA
Analog Devices EVAL-LTC6226S8			330 MHz	64 mA			Rail-to-Rail Single-Ended	180 V/µs								General Purpose				5.5 mA	LTC6226	1 - Single	Fully Populated	5.875 V 11.75 V	-1.4 V 2.8 V	Board(s)
Analog Devices LTC6226IDC#TRMPBF	6-DFN (2x2)	420 MHz	330 MHz	64 mA	8.4 µA	20 çV	Rail-to-Rail	180 V/µs	85 °C	-40 °C	1	6-WFDFN Exposed Pad			11.75 V	General Purpose	Surface Mount	2.8 V	5.5 mA
Analog Devices LTC6226IS6#TRPBF	TSOT-23-6	420 MHz	330 MHz	64 mA	8.4 µA	20 çV	Rail-to-Rail	180 V/µs	85 °C	-40 °C	1	SOT-23-6 Thin TSOT-23-6			11.75 V	General Purpose	Surface Mount	2.8 V	5.5 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 69.45

Description

General part information

LTC6226 Series

The LTC6226 are very fast, low noise rail-to-rail output, unity gain stable single/dual op amps, with a gainbandwidth product of 420MHz and a slew rate of 180V/μs. The low input referred voltage noise of only 1nV/√Hz and low distortion of less than –90dBCfor 4VP-Psignals at 1MHz makes them ideal for applications that require high dynamic range and deal with very fast signals, such as driving A/D converters.The combination of low offset, low offset drift, high gain (139dB) and high CMRR (114dB) make these excellent devices for high dynamic range applications.The LTC6226 family maintains excellent performance for supply voltages of 2.8V to 11.75V and the devices are fully specified at supplies of 3V, 5V and 10V (±5V).With an input range extending to the negative rail and rail-to-rail output stage, the operational amplifier can accommodate wide swinging signals, and true single supply operation.For space constrained applications, the amplifiers come in 2mm × 2mm DFN (single) and 3mm × 3mm DFN (dual) packages. The devices are also available in 8-lead SOIC,TSOT-23 and MS8E.These amplifiers can be used as replacements for many high speed op amps to improve speed, noise and dynamic range.ApplicationsOptical Electronics: Fast AC-Coupled Transimpedance AmplifiersDriving High Dynamic Range A/D ConvertersActive FiltersVideo AmplifiersLow Voltage Low Distortion Amplification
