Q-340680005006I
ActiveAmphenol Custom Cable

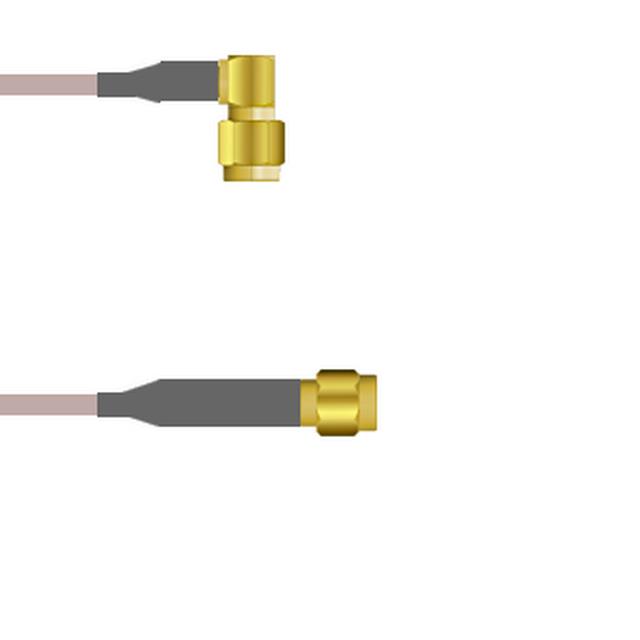

COAX CBL RP-SMA TO SMA 6"
Deep-Dive with AI
Search across all available documentation for this part.
Q-340680005006I
ActiveAmphenol Custom Cable
COAX CBL RP-SMA TO SMA 6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-340680005006I |
|---|---|
| 1st Connector | RP-SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 152.4 mm |
| Length | 6 in |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 86.88 | |
| 25 | $ 85.19 | |||
| 50 | $ 83.50 | |||
| 100 | $ 81.80 | |||
| 250 | $ 80.11 | |||
Description
General part information
Q-340680 Series
Cable Assembly Coaxial RP-SMA to SMA RG-316 6.000" (152.40mm)
Documents
Technical documentation and resources
No documents available
