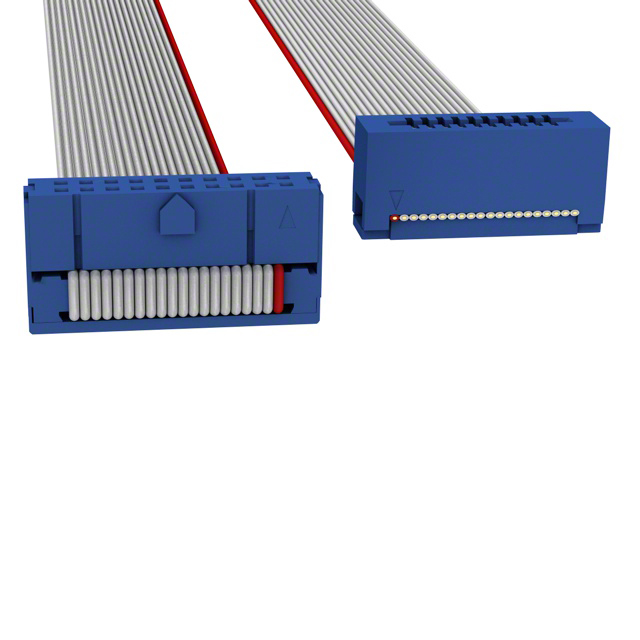

C3DES-2018G

Active

CW Industries

IDC CABLE - CKR20S/AE20G/CCE20S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C3DES-2018G

Active

CW Industries

IDC CABLE - CKR20S/AE20G/CCE20S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3DES-2018G

Cable Termination	IDC
Connector Type	Socket to Card Edge
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Polarizing Key, Strain Relief
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Board In

C3DES-2 Series

Part	Contact Finish	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Features	Pitch - Cable	Pitch - Cable	Color	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Positions	Shielding	Usage	Length	Length	Length
CW Industries C3DES-2036M	Tin	3 ft	914.4 mm	2.54 µm	100 µin	2	Socket to Card Edge	Polarizing Key Strain Relief	0.05 "	1.27 mm	Multiple Ribbon	0.1 in	2.54 mm	IDC	20	Unshielded	Board In
CW Industries C3DES-2036G	Tin	3 ft	914.4 mm	2.54 µm	100 µin	2	Socket to Card Edge	Polarizing Key Strain Relief	0.05 "	1.27 mm		0.1 in	2.54 mm	IDC	20	Unshielded	Board In
CW Industries C3DES-2618M	Tin	1.5 ft	457.2 mm	2.54 µm	100 µin	2	Socket to Card Edge	Polarizing Key Strain Relief	0.05 "	1.27 mm	Multiple Ribbon	0.1 in	2.54 mm	IDC	26	Unshielded	Board In
CW Industries C3DES-2018G	Tin	1.5 ft	457.2 mm	2.54 µm	100 µin	2	Socket to Card Edge	Polarizing Key Strain Relief	0.05 "	1.27 mm		0.1 in	2.54 mm	IDC	20	Unshielded	Board In
CW Industries C3DES-2606M	Tin			2.54 µm	100 µin	2	Socket to Card Edge	Polarizing Key Strain Relief	0.05 "	1.27 mm	Multiple Ribbon	0.1 in	2.54 mm	IDC	26	Unshielded	Board In	152.4 mm	6 "	0.5 '
CW Industries C3DES-2636G	Tin	3 ft	914.4 mm	2.54 µm	100 µin	2	Socket to Card Edge	Polarizing Key Strain Relief	0.05 "	1.27 mm		0.1 in	2.54 mm	IDC	26	Unshielded	Board In
CW Industries C3DES-2018M	Tin	1.5 ft	457.2 mm	2.54 µm	100 µin	2	Socket to Card Edge	Polarizing Key Strain Relief	0.05 "	1.27 mm	Multiple Ribbon	0.1 in	2.54 mm	IDC	20	Unshielded	Board In
CW Industries C3DES-2006G	Tin			2.54 µm	100 µin	2	Socket to Card Edge	Polarizing Key Strain Relief	0.05 "	1.27 mm		0.1 in	2.54 mm	IDC	20	Unshielded	Board In	152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.05
		10	$ 10.03
		25	$ 9.06
		50	$ 8.41
		100	$ 7.82
		250	$ 7.12
		500	$ 6.65
		1000	$ 6.22

Description

General part information

C3DES-2 Series

20 Position Cable Assembly Rectangular Socket to Card Edge 1.50' (457.20mm)
