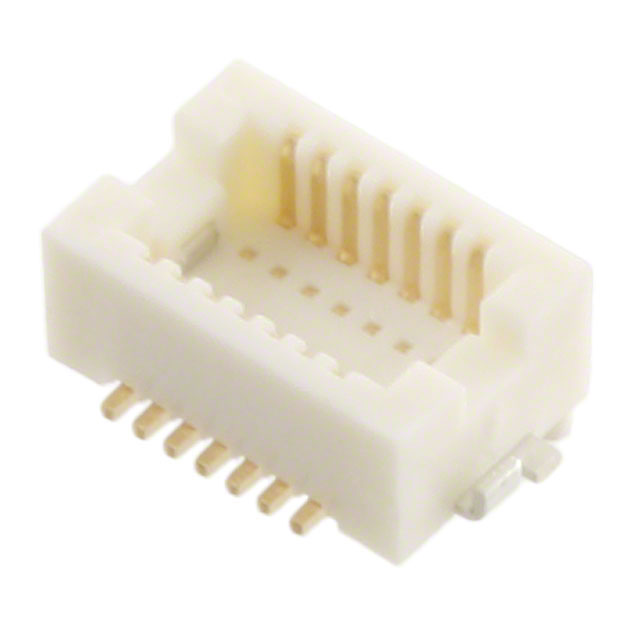

DF12E(3.0)-14DP-0.5V(81)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 14POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 14POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF12E(3.0)-14DP-0.5V(81)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Height Above Board [z]	0.091 in
Height Above Board [z]	2.3 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	14
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Mounting Type	Connector Type
Hirose Electric USA, Inc. DF12E(3.0)-14DP-0.5V(81)	Gold	2	0.5 mm	0.02 in	14	0.091 in	2.3 mm	8 çin	0.203 çm	3 mm	Surface Mount	Header Outer Shroud Contacts
Hirose Electric USA, Inc. DF12E(3.0)-30DP-0.5V(81)	Gold	2	0.5 mm	0.02 in	30	0.091 in	2.3 mm	8 çin	0.203 çm	3 mm	Surface Mount	Header Outer Shroud Contacts
Hirose Electric USA, Inc. DF12E(3.0)-36DP-0.5V(81)	Gold	2	0.5 mm	0.02 in	36	0.091 in	2.3 mm	8 çin	0.203 çm	3 mm	Surface Mount	Header Outer Shroud Contacts
Hirose Electric USA, Inc. DF12E(3.0)-32DP-0.5V(81)	Gold	2	0.5 mm	0.02 in		0.091 in	2.3 mm	8 çin	0.203 çm	3 mm	Surface Mount	Header Outer Shroud Contacts
Hirose Electric USA, Inc. DF12E(3.0)-80DP-0.5V(81)	Gold	2	0.5 mm	0.02 in	80	0.091 in	2.3 mm	8 çin	0.203 çm	3 mm	Surface Mount	Header Outer Shroud Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
