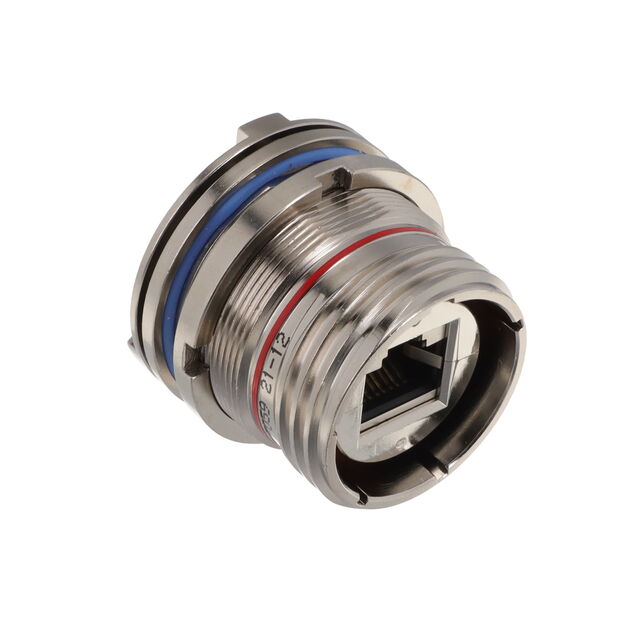

RJFTV7SA5NF059

Active

Amphenol Socapex

RJFTV SIZE 19 38999 SHELL JAM NU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJFTV7SA5NF059

Active

Amphenol Socapex

RJFTV SIZE 19 38999 SHELL JAM NU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJFTV7SA5NF059

Connector Type	Jack
Features	Circular Threaded Coupling
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	Straight
Ratings	Cat5e
Shielding	Unshielded
Termination	PC Board, Solder

RJFTV7 Series

Part	Shielding	Style	Connector Type	Mounting Type	Color	Length	Length	Features	Number of Positions/Contacts	Cable Type	Orientation	Termination	Ratings	Number of Rows	LED Color	Number of Ports	Convert To (Adapter End)	Convert From (Adapter End)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Mounting Feature	Ingress Protection	Tab Direction	Length [x]	Length [x]
Amphenol Socapex RJFTV7SA2G07100BTX	Double Shielded	Cat5e Industrial Environments - IP68	Jack to Plug	Flange Panel Mount	Gray	2.3 ft	700 mm	Circular Threaded Coupling	8p8c (RJ45 Ethernet)	Round Cable
Amphenol Socapex RJFTV7SA5GF059	Unshielded		Jack	Bulkhead Panel Mount				Circular Threaded Coupling	8p8c (RJ45 Ethernet)		Straight	PC Board Solder	Cat5e	1	Does Not Contain LED	1
Amphenol Socapex RJFTV7SC1G																	8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Coupler	85 °C	-40 °C
Amphenol Socapex RJFTV7PEM2G15100BTX	Double Shielded	Cat5e Industrial Environments - IP68	Jack to Plug	Flange Panel Mount	Gray	4.92 '	1.5 m	Circular Threaded Coupling	8p8c (RJ45 Ethernet)	Round Cable
Amphenol Socapex RJFTV7SAPEM1G	Shielded			Bulkhead Panel Mount				Circular Threaded Coupling					Cat5e				8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Coupler	85 °C	-40 °C	Aluminum Olive Drab Cadmium Plated	Front Side Nut	IP68 - Dust Tight Waterproof
Amphenol Socapex RJFTV7HA1G	Unshielded		Jack	Bulkhead Panel Mount				Circular Threaded Coupling	8p8c (RJ45 Ethernet)		Straight	PC Board Solder	Cat5e	1	Does Not Contain LED	1				85 °C	-40 °C			IP67 - Dust Tight Waterproof	User Selectable
Amphenol Socapex RJFTV7SA5NF059	Unshielded		Jack	Bulkhead Panel Mount				Circular Threaded Coupling	8p8c (RJ45 Ethernet)		Straight	PC Board Solder	Cat5e	1	Does Not Contain LED	1
Amphenol Socapex RJFTV7PEM1BZ																	8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Coupler	85 °C	-40 °C
Amphenol Socapex RJFTV7SB1G																	8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Coupler	85 °C	-40 °C
Amphenol Socapex RJFTV7SA2G03100BTX	Double Shielded	Cat5e Industrial Environments - IP68	Jack to Plug	Flange Panel Mount	Gray			Circular Threaded Coupling	8p8c (RJ45 Ethernet)	Round Cable																0.98 ft	300 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 166.12
		10	$ 152.44
		25	$ 146.58
		50	$ 141.69

Description

General part information

RJFTV7 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat5e
