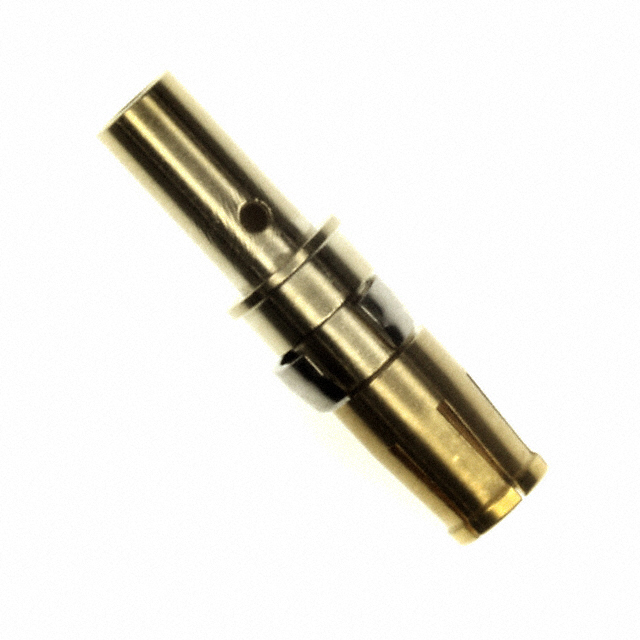

13-000301

Active

Amphenol CONEC

CONN D-SUB SOCKET 12-14AWG CRIMP

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB SOCKET 12-14AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	13-000301

Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Termination	Crimp
Contact Type	Female Socket
Termination Finish	Gold
Termination Finish Thickness	0.203 µm
Termination Finish Thickness	8 µin
Type	Power
Wire Gauge [Max]	14 AWG
Wire Gauge [Min]	12 AWG

Part	Dielectric Material	Contact Type	Color	Shell Size, Connector Layout	Note	Number of Positions [custom]	Number of Positions [custom]	Number of Rows	Connector Type	Flange Feature	Connector Style	Mounting Type	Mating Cycles	Features	Wire Gauge [Max]	Wire Gauge [Min]	Termination Finish	Contact Material	Type	Contact Finish Thickness	Contact Finish Thickness	Termination Finish Thickness	Termination Finish Thickness	Contact Finish	Contact Termination
Amphenol CONEC 13-000370	Polybutylene Terephthalate (PBT) Glass Filled	Signal and Power	Black	2 (DA A) - 7W2	Contacts Not Included	7	2	2	Receptacle for Female Contacts	Cable Side	Combo D-Sub	Free Hanging (In-Line)	250	Mounting Hardware Strain Relief
Amphenol CONEC 13-000301		Female Socket													14 AWG	12 AWG	Gold	Copper Alloy	Power	0.76 Ám	30 Áin	0.203 µm	8 µin	Gold	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Contact Female Socket Gold 12-14 AWG Crimp Machined
