EVB_RT7299BHGQW

Active

Richtek USA Inc.

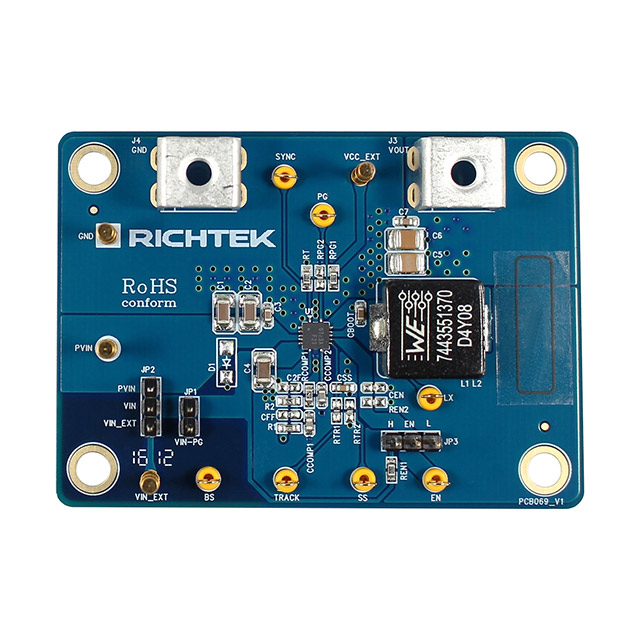

EVAL MODULE FOR RT7299BHGQW

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT7299BHGQW

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output (Min/Fixed)	Output Configuration	Number of Outputs	Supplier Device Package	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Synchronous Rectifier	Output Type	Current - Output	Function	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Frequency - Switching [Min]	Frequency - Switching [Max]	Mounting Type	Package / Case	Outputs and Type	Outputs and Type	Voltage - Output	Board Type	Utilized IC / Part	Main Purpose	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology
Richtek USA Inc. RT7299BHGQW	0.6 V	Positive	1	14-WQFN-AL (3.5x3.5)	18 V	18 V		Adjustable	8 A	Step-Down	Buck	85 °C	-40 °C	4.5 V	200 kHz	1.6 MHz	Surface Mount	14-WFQFN Exposed Pad
Richtek USA Inc. EVB_RT7299BHGQW									8 A										Non-Isolated	1	3.3 V	Fully Populated	RT7299B	DC/DC Step Down	Board(s)	18 V	4.5 V	Buck

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.19

General part information

RT7299B - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources
