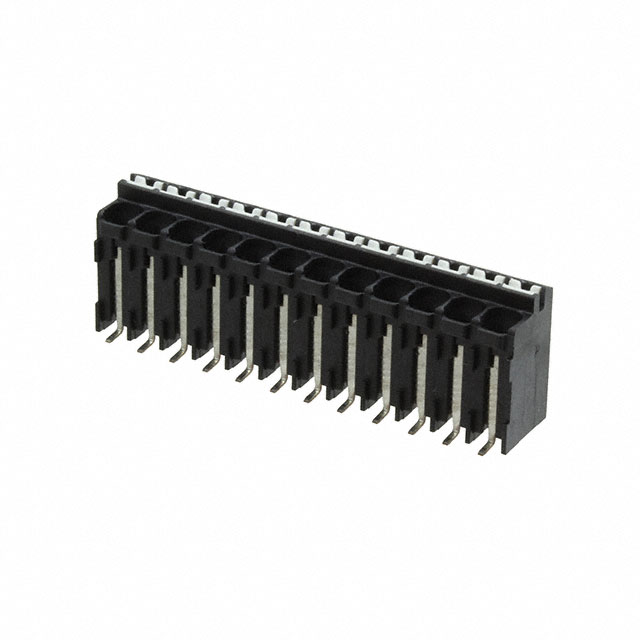

1824514

Active

Phoenix Contact

FIXED TERMINAL BLOCKS SPT-SMD 1,5/12-V-5 08 R88

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS SPT-SMD 1,5/12-V-5 08 R88

Technical Specifications

Parameters and characteristics for this part

Specification	1824514

Color	Black
Contact Material - Plating [custom]	Tin Plated
Current	10 A
Housing Material	Liquid Crystal Polymer (LCP)
Mating Orientation	Vertical with Board
Mounting Type	Surface Mount
Number of Levels	1
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	12
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring

Fixed Terminal Blocks SPT-SMD 1,5/10-H-3,5 R72

Part	Voltage	Wire Gauge [Min]	Wire Gauge [Max]	Number of Levels	Mounting Type	Current	Wire Termination	Contact Material - Plating [custom]	Positions Per Level	Color	Mating Orientation	Pitch [x]	Pitch [x]	Housing Material	Features
Phoenix Contact 1824514	300 V	16 AWG	24 AWG	1	Surface Mount	10 A	Push-In Spring Screwless - Leg Spring	Tin Plated	12	Black	Vertical with Board	0.2 in	5.08 mm	Liquid Crystal Polymer (LCP)
Phoenix Contact 1824844	300 V	16 AWG	24 AWG	1	Surface Mount	10 A	Push-In Spring Screwless - Leg Spring	Tin Plated	12	Black	Horizontal with Board	0.197 in	5 mm	Liquid Crystal Polymer (LCP)	Board Guide
Phoenix Contact 1824242	300 V	16 AWG	24 AWG	1	Surface Mount	10 A	Push-In Spring Screwless - Leg Spring	Tin Plated	7	Black	Vertical with Board	0.15 in	3.81 mm	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.55
	Tape & Reel (TR)	200	$ 7.89
Sager	N/A	200	$ 9.49

General part information

Fixed Terminal Blocks SPT-SMD 1,5/10-H-3,5 R72

Technical documentation and resources

No documents available
