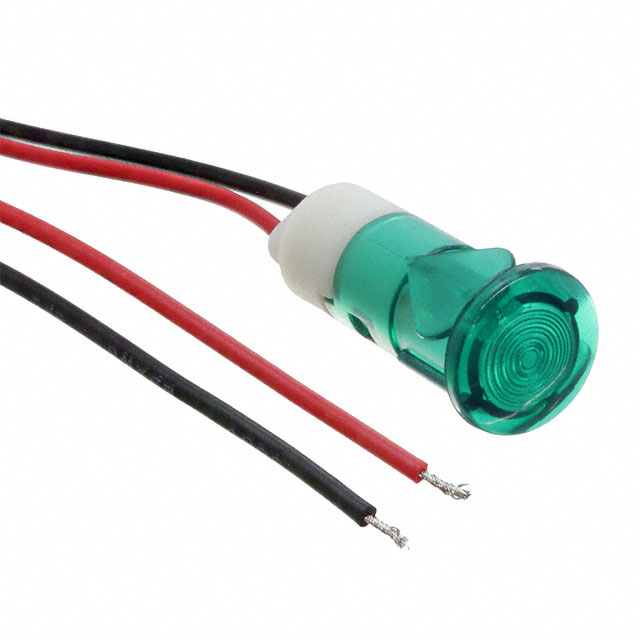

FL1P-12QW-1-G12V
ActiveMallory Sonalert Products Inc.
LED GRN 12MM SNAP 12VAC/DC STK
Deep-Dive with AI
Search across all available documentation for this part.
FL1P-12QW-1-G12V
ActiveMallory Sonalert Products Inc.
LED GRN 12MM SNAP 12VAC/DC STK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FL1P-12QW-1-G12V |
|---|---|
| Ingress Protection | IP50 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 14.2 mm |
| Lens Style | Round with Domed Top |
| Millicandela Rating [Max] | 10000 mcd |
| Millicandela Rating [Min] | 8000 mcd |
| Panel Cutout Dimensions | 12 mm |
| Panel Cutout Dimensions | 0.47 in |
| Panel Cutout Shape | Round |
| Ratings | AC/DC |
| Termination Style | Wire Leads - 7.3" (185.42mm) |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 12 V |
FL1P-12 Series
| Part | Lamp Color | Millicandela Rating [Max] | Millicandela Rating [Min] | Lens Size [diameter] | Panel Cutout Dimensions | Panel Cutout Dimensions | Termination Style | Type | Ratings | Ingress Protection | Viewing Angle | Panel Cutout Shape | Lens Color | Voltage | Lens Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mallory Sonalert Products Inc. | Red | 1500 mcd | 1000 mcd | 15.7 mm | 0.49 in | 12.5 mm | Wire Leads - 7.3" (185.42mm) | LED | AC/DC | IP50 | 35 ° | Round | Red | 220 V | Round with Domed Top |
Mallory Sonalert Products Inc. | Green | 10000 mcd | 8000 mcd | 14.2 mm | 0.47 in | 12 mm | Wire Leads - 7.3" (185.42mm) | LED | AC/DC | IP50 | 60 ° | Round | Green | 12 V | Round with Domed Top |
Mallory Sonalert Products Inc. | Green | 10000 mcd | 8000 mcd | 15.7 mm | 0.49 in | 12.5 mm | Wire Leads - 7.3" (185.42mm) | LED | AC/DC | IP50 | 60 ° | Round | Green | 220 V | Round with Domed Top |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 35 | $ 2.59 | |
Description
General part information
FL1P-12 Series
LED Panel Indicator Green 60° 12V 20mA Wire Leads - 7.3" (185.42mm)
Documents
Technical documentation and resources
No documents available
