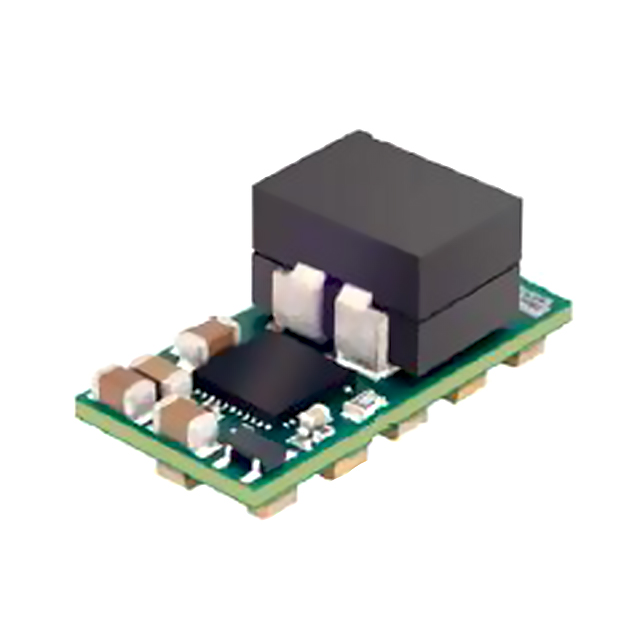

OKLP-X/35-W12-C
ObsoleteMurata Power Solutions Inc.
DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 82.5W, HYBRID, PACKAGE-11
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OKLP-X/35-W12-C
ObsoleteMurata Power Solutions Inc.
DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 82.5W, HYBRID, PACKAGE-11
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OKLP-X/35-W12-C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 35 A |
| Efficiency | 94 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 11-SMD Module |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 12.7 mm |
| Size / Dimension [y] | 0.5 in |
| Size / Dimension [z] | 0.44 " |
| Size / Dimension [z] | 11.1 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 7 V |
| Voltage - Output 1 [Max] | 3.6 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
OKLP-X Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 35A 7V - 13.2V Input
