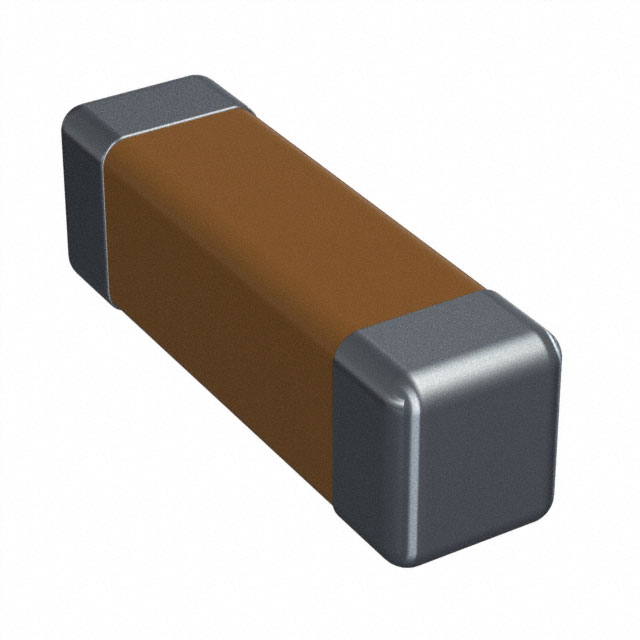

CDR02BX223AKUS7185
ActiveKEMET
CAP CER 0.022UF 50V BX 1805
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDR02BX223AKUS7185
ActiveKEMET
CAP CER 0.022UF 50V BX 1805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDR02BX223AKUS7185 |
|---|---|
| Applications | High Reliability |
| Capacitance | 0.022 µF |
| Failure Rate | S (0.001%) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1805 |
| Package / Case | 4512 Metric |
| Size / Dimension [x] | 0.18 " |
| Size / Dimension [x] | 4.57 mm |
| Size / Dimension [y] | 1.27 mm |
| Size / Dimension [y] | 0.05 " |
| Temperature Coefficient | BX |
| Thickness (Max) [Max] | 1.4 mm |
| Thickness (Max) [Max] [custom] | 0.055 in |
| Tolerance | 10 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.83 | |
| Digi-Reel® | 1 | $ 1.83 | ||
| Tape & Reel (TR) | 300 | $ 0.83 | ||
Description
General part information
CDR02 Series
0.022 µF ±10% 50V Ceramic Capacitor BX 1805 (4512 Metric)
Documents
Technical documentation and resources
