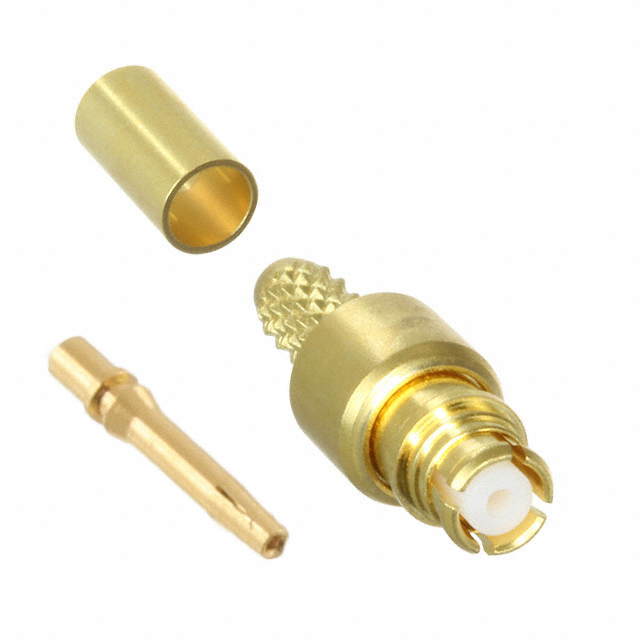

19K101-103L5

Active

Rosenberger

CONN SMP JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN SMP JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	19K101-103L5

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Body Material	Center Contact Material	Dielectric Material	Number of Ports	Connector Type	Voltage Rating	Body Finish	Fastening Type	Mounting Type	Impedance	Shield Termination	Housing Color	Center Contact Plating	Contact Termination	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Convert From (Adapter End)	Style	Conversion Type	Adapter Type	Adapter Series	Center Gender	Convert To (Adapter End)
Rosenberger 19K101-272L5	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	Female Socket Jack	335 V	Gold	Snap-On	Free Hanging (In-Line)	50 Ohms	Solder	Gold	Gold	Solder	26.5 GHz	155 °C	-65 ░C
Rosenberger 19K101-103L5	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	Female Socket Jack	335 V	Gold	Snap-On	Free Hanging (In-Line)	50 Ohms	Crimp	Gold	Gold	Crimp	26.5 GHz	155 °C	-65 ░C	RG-316
Rosenberger 19K101-271L5	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	Female Socket Jack	335 V	Gold	Snap-On	Free Hanging (In-Line)	50 Ohms	Solder	Gold	Gold	Solder	26.5 GHz	155 °C	-65 ░C	RG-405 (.085" Semi Rigid)
Rosenberger 19K101-102L5	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	Female Socket Jack	335 V	Gold	Snap-On	Free Hanging (In-Line)	50 Ohms	Crimp	Gold	Gold	Crimp	26.5 GHz	155 °C	-65 ░C	188A 316 RG-174A
Rosenberger 19K101-K00L5	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)				Gold	Snap-On	Free Hanging (In-Line)	50 Ohms			Gold		26.5 GHz	155 °C	-65 ░C		SMP Jack Female Socket	Straight	Same Series	Jack to Jack	SMP to SMP	Female to Female	Female Socket SMP Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
