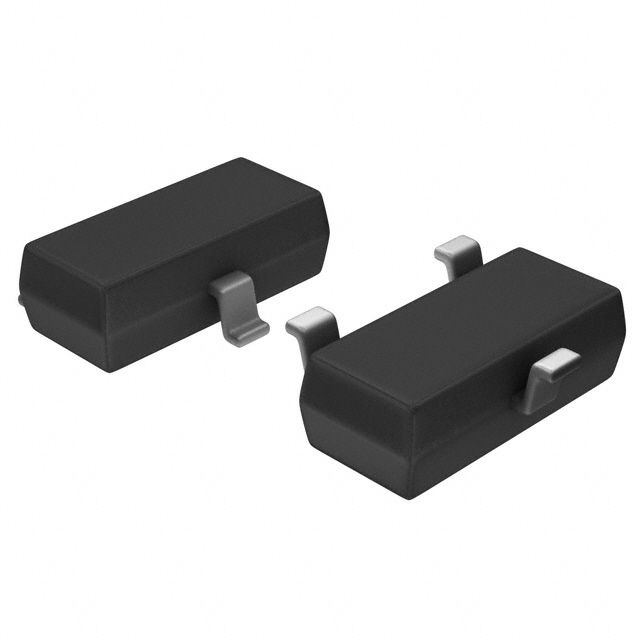

2SA1036KT146P

Obsolete

Rohm Semiconductor

TRANS PNP 32V 0.5A SMT3

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

TRANS PNP 32V 0.5A SMT3

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1036KT146P

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	1 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	82
Frequency - Transition	200 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power - Max [Max]	200 mW
Supplier Device Package	SMT3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	600 mV
Voltage - Collector Emitter Breakdown (Max)	32 V

Part	Operating Temperature	Package / Case	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Transistor Type	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max)
Rohm Semiconductor 2SA1036KT146P	150 °C	SC-59 SOT-23-3 TO-236-3	600 mV	200 mW	Surface Mount	82	500 mA	1 µA	200 MHz	PNP	SMT3	32 V
Rohm Semiconductor 2SA1036KT146R	150 °C	SC-59 SOT-23-3 TO-236-3	600 mV	200 mW	Surface Mount	120	500 mA	1 µA	200 MHz	PNP	SMT3	32 V
Rohm Semiconductor 2SA1036KT146Q	150 °C	SC-59 SOT-23-3 TO-236-3	600 mV	200 mW	Surface Mount	120	500 mA	1 µA	200 MHz	PNP	SMT3	32 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 32 V 500 mA 200MHz 200 mW Surface Mount SMT3
