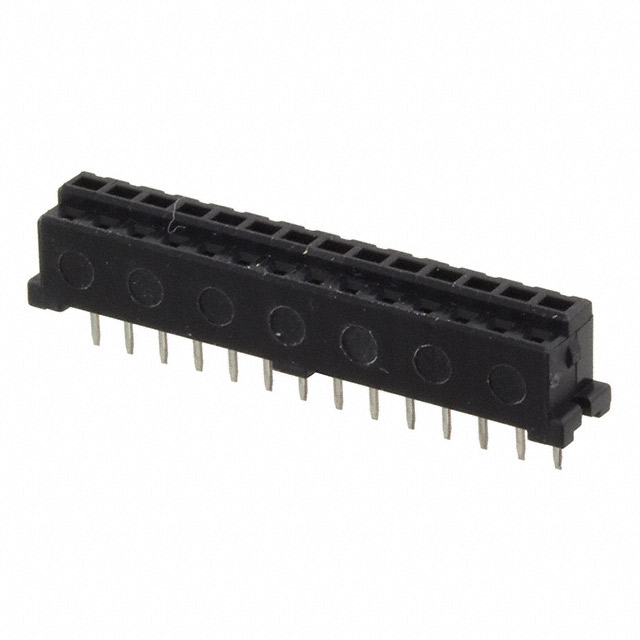

DF3-14S-2DSA(55)
LTBHirose Electric USA, Inc.
CONN RCPT 14POS 0.079 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF3-14S-2DSA(55)
LTBHirose Electric USA, Inc.
CONN RCPT 14POS 0.079 GOLD PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF3-14S-2DSA(55) |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Friction Lock |
| Insulation Color | Black |
| Insulation Height | 5.9 mm |
| Insulation Height | 0.232 in |
| Insulation Material | Polyamide (PA), Nylon |
| Mated Stacking Heights [z] | 6.6 mm, 7.5 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 30 VAC |
DF3-14S Series
| Part | Features | Number of Rows | Color | Wire Gauge | Contact Type | Pitch [x] | Pitch [x] | Number of Positions | Cable Termination | Connector Type | Contact Finish | Mounting Type | Wire Type | Mated Stacking Heights [z] | Number of Positions Loaded | Fastening Type | Contact Material | Current Rating (Amps) | Contact Finish - Post | Voltage Rating | Contact Length - Post | Contact Length - Post | Style | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating [x] | Pitch - Mating [x] | Contact Shape | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Closed End | 1 | Black | 26 AWG | Female Socket | 0.079 in | 2 mm | 14 | IDC | Receptacle | Tin | Free Hanging (In-Line) | Discrete | ||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Closed End | 1 | Black | 28 AWG | Female Socket | 0.079 in | 2 mm | 14 | IDC | Receptacle | Tin | Free Hanging (In-Line) | Discrete | ||||||||||||||||||||||||||
Hirose Electric USA, Inc. | 1 | Female Socket | 14 | Receptacle | Through Hole | 6.6 mm 7.5 mm | All | Friction Lock | Phosphor Bronze | 3 A | Tin | 30 VAC | 0.118 in | 3 mm | Board to Board Cable | Gold | 1 çm | 39.4 çin | UL94 V-0 | Nylon Polyamide (PA) | -30 ░C | 85 °C | Black | Solder | 0.203 Ám | 8 Áin | 0.079 in | 2 mm | Square | 5.9 mm | 0.232 in | ||||||||
Hirose Electric USA, Inc. | Closed End | 1 | Black | 28 AWG | Female Socket | 0.079 in | 2 mm | 14 | IDC | Receptacle | Gold | Free Hanging (In-Line) | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 16 | $ 2.48 | |
Description
General part information
DF3-14S Series
14 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
