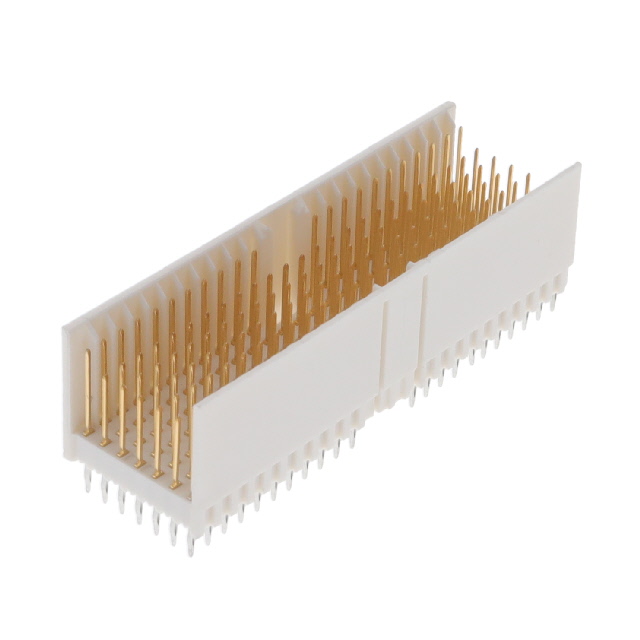

HM2P65PDE121N9LF
ActiveAmphenol ICC (FCI)
CONN HEADER 169POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
HM2P65PDE121N9LF
ActiveAmphenol ICC (FCI)
CONN HEADER 169POS 2MM PRESS-FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HM2P65PDE121N9LF |
|---|---|
| Connector Style | AB 25 |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Current Rating (Amps) | 1.5 A |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 2, 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 750 Vrms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.10 | |
| 10 | $ 3.93 | |||
| 25 | $ 3.53 | |||
| 40 | $ 3.49 | |||
| 80 | $ 3.14 | |||
| 230 | $ 3.08 | |||
| 440 | $ 3.05 | |||
| 945 | $ 3.01 | |||
| 2400 | $ 2.82 | |||
Description
General part information
HM2P65 Series
169 (125 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Documents
Technical documentation and resources
