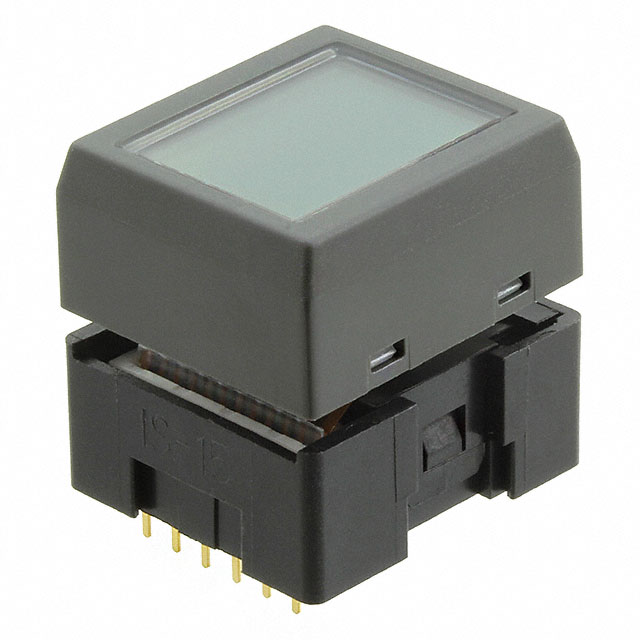

IS15BAFP4CF

Active

NKK Switches

PROGRAMMABLE DISPLAY SWITCH, FRAMELESS, SMARTSWITCH IS SERIES, SPST-NO, THROUGH HOLE, 100 MA, 12 V

Search across all available documentation for this part.

Active

NKK Switches

PROGRAMMABLE DISPLAY SWITCH, FRAMELESS, SMARTSWITCH IS SERIES, SPST-NO, THROUGH HOLE, 100 MA, 12 V

Technical Specifications

Parameters and characteristics for this part

Specification	IS15BAFP4CF

Circuit	SPST-NO
Contact Rating @ Voltage	0.1 A, 12 VDC
Display Mode	Black and White, FSTN Positive
Face Size [x]	23.13 mm
Face Size [y]	20.59 mm
LED Color	Green, Red
LED Forward Current	15, 15 mA
LED Forward Voltage	2.2 VDC, 3.3 VDC
Mounting Type	Through Hole
Operating Force	173 gf
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Pixel Format [x]	36
Pixel Format [y]	24
Style	Standard
Supply Voltage [Max]	5.5 V
Supply Voltage [Min]	3 V
Switch Function	Off-Mom
Termination Style	PC Pin
Travel Range	1.8 mm
Type	LCD, Pushbutton
Viewing Area [x]	17 mm
Viewing Area [y]	13 mm

Part	Circuit	Style	Operating Temperature [Min]	Operating Temperature [Max]	Pixel Format [y]	Pixel Format [x]	LED Forward Voltage	LED Color	Termination Style	Mounting Type	Viewing Area [y]	Viewing Area [x]	Contact Rating @ Voltage	Supply Voltage [Max]	Supply Voltage [Min]	Face Size [y]	Face Size [x]	Operating Force	Switch Function	Display Mode	Travel Range	Type	LED Forward Current
NKK Switches IS15BAFP4CF	SPST-NO	Standard	-20 C	60 °C	24	36	2.2 VDC 3.3 VDC	Green Red	PC Pin	Through Hole	13 mm	17 mm	0.1 A 12 VDC	5.5 V	3 V	20.59 mm	23.13 mm	173 gf	Off-Mom	Black and White FSTN Positive	1.8 mm	LCD Pushbutton	15 15 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable Display Switch Pushbutton, LCD SPST-NO 0.1A @ 12VDC Through Hole
