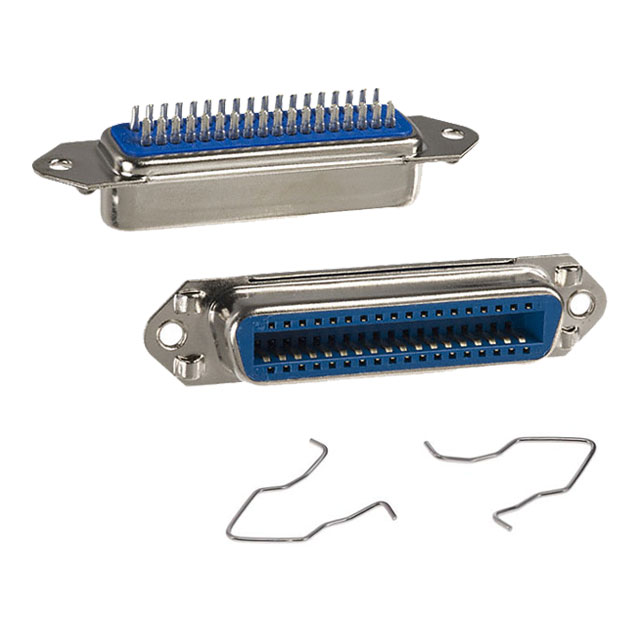

111-036-203L001

Active

MH Connectors

I/O CONNECTOR, 36 CONTACTS, RECEPTACLE, SCSI, SOLDER, 111 SERIES, PANEL MOUNT

Search across all available documentation for this part.

Active

MH Connectors

I/O CONNECTOR, 36 CONTACTS, RECEPTACLE, SCSI, SOLDER, 111 SERIES, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Number of Rows	Flange Feature	Type	Number of Positions	Mounting Type	Connector Style	Connector Type	Contact Finish	Termination
MH Connectors 111-036-113L001	Flash	2	Housing/Shell (Unthreaded)	SCSI	36	Through Hole	Center Strip Contacts	Plug	Gold	Solder
MH Connectors 111-036-203L001	Flash	2	Housing/Shell (Unthreaded)	SCSI	36	Free Hanging (In-Line)	Outer Shroud Contacts	Receptacle	Gold
MH Connectors 111-036-213L001	Flash	2	Housing/Shell (Unthreaded)	SCSI	36	Through Hole	Outer Shroud Contacts	Receptacle	Gold	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36 Position Receptacle Connector SCSI Free Hanging (In-Line) Solder Cup

Technical documentation and resources
