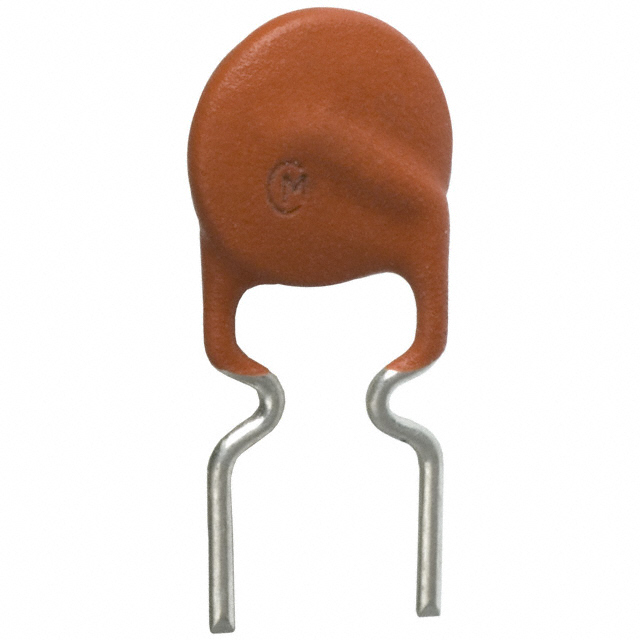

PTGL07AS5R6K4N51B0

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 60V 186MA RADIAL

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 60V 186MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Lead Spacing	Lead Spacing	Current - Max [Max]	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Max [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Resistance - 25°C (Typ)	Size / Dimension [y]	Size / Dimension [y]
Murata Power Solutions Inc. PTGL07AS3R3K3B51B0	Disc Radial	5 mm	0.197 in	3 A	606 mA	307 mA	Through Hole	0.484 in	12.3 mm	51 V	0.138 in	3.5 mm	7.3 mm	0.287 in
Murata Power Solutions Inc. PTGL07AS5R6K4B51A0	Disc Radial	5 mm	0.197 in	3 A	386 mA	290 mA	Through Hole	0.484 in	12.3 mm	60 V	0.138 in	3.5 mm	7.3 mm	0.287 in	Ceramic	-30 ░C	85 °C	5.6 Ohms
Murata Power Solutions Inc. PTGL07AS201M0N51A0
Murata Power Solutions Inc. PTGL07AS5R6K4N51B0	Disc Radial	5 mm	0.197 in	2.2 A	368 mA	186 mA	Through Hole	0.484 in	12.3 mm	60 V			7.3 mm	0.287 in	Ceramic	-10 °C	60 °C	5.6 Ohms	0.138 in	3.5 mm
Murata Power Solutions Inc. PTGL07AS2R7K2B51A0	Disc Radial	5 mm	0.197 in		565 mA	425 mA	Through Hole	0.484 in	12.3 mm	30 V	0.138 in	3.5 mm	7.3 mm	0.287 in	Ceramic	-10 °C	60 °C	2.7 Ohms
Murata Power Solutions Inc. PTGL07AS201M0N51B0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ceramic PTC Resettable Fuse 60V 186 mA Ih Through Hole Radial, Disc
