A1555.13.07

Active

American Electrical Inc.

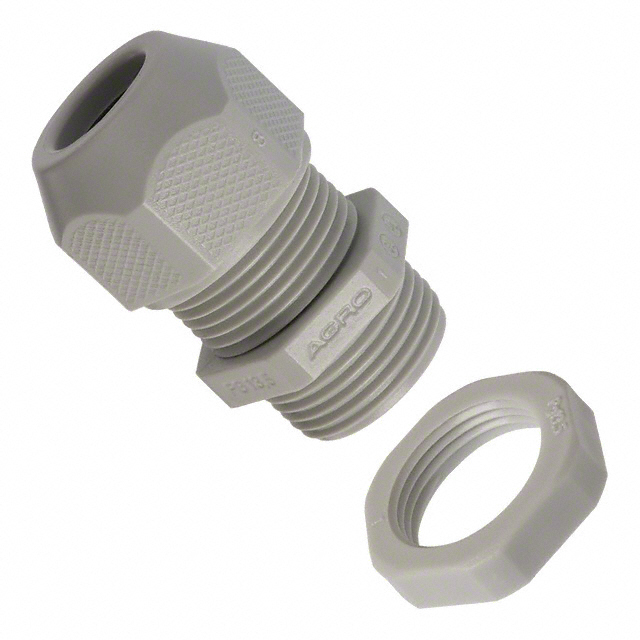

CABLE GLAND 3-7MM PG13 POLYAMIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKnockout Hole Sizes Datasheet

A1555.13.07

Active

American Electrical Inc.

CABLE GLAND 3-7MM PG13 POLYAMIDE

Deep-Dive with AI

DocumentsKnockout Hole Sizes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A1555.13.07

Color	Light Gray
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Outside Cable Diameter (Max) [Max] [diameter]	7 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.276 in
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Thread Length	0.354 in
Thread Length	9 mm
Thread Size	PG13
Type	Cable Gland

1555 Series

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Thread Length	Thread Length	Thread Size	Type	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Panel Hole Size	Panel Hole Size	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
American Electrical Inc. A1555.48.44	1.26 "	32 mm	Sealing Ring	0.591 in	15 mm	PG48	Cable Gland	Light Gray	44 mm	1.732 in	100 °C	-30 ░C	Polyamide (PA) Nylon	2.338 in	59.3 mm	IP68 - Dust Tight Waterproof
American Electrical Inc. A1555.13.07	0.118 in	3 mm	Sealing Ring	0.354 in	9 mm	PG13	Cable Gland	Light Gray			100 °C	-30 ░C	Polyamide (PA) Nylon			IP68 - Dust Tight Waterproof	7 mm	0.276 in
American Electrical Inc. A1555.21.18	0.433 in	11 mm	Sealing Ring	0.433 in	11 mm	PG21	Cable Gland	Light Gray			100 °C	-30 ░C	Polyamide (PA) Nylon	1.114 in	28.3 mm	IP68 - Dust Tight Waterproof	18.01 mm	0.709 in
American Electrical Inc. A1555.16.11			Sealing Ring	0.394 in	10 mm	PG16	Cable Gland	Light Gray	11 mm	0.433 in	100 °C	-30 ░C	Polyamide (PA) Nylon	0.886 in	22.5 mm	IP68 - Dust Tight Waterproof			5 mm	0.197 in
American Electrical Inc. A1555.N0375.08	0.118 in	3 mm	Sealing Ring	0.591 in	15 mm	3/8" NPT	Cable Gland	Light Gray			100 °C	-30 ░C	Polyamide (PA) Nylon			IP54/IP68 - Dust Protected Dust Tight Waterproof Water Resistant	8 mm	0.315 in
American Electrical Inc. A1555.N1000.22			Sealing Ring	0.591 in	15 mm	1" NPT	Cable Gland	Light Gray			100 °C	-30 ░C	Polyamide (PA) Nylon			IP54/IP68 - Dust Protected Dust Tight Waterproof Water Resistant	22 mm	0.866 "
American Electrical Inc. A1555.11.07	0.079 in	2 mm	Sealing Ring	0.315 in	8 mm	PG11	Cable Gland	Light Gray			100 °C	-30 ░C	Polyamide (PA) Nylon	0.732 in	18.6 mm	IP68 - Dust Tight Waterproof	7 mm	0.276 in
American Electrical Inc. A1555.07.06	0.098 in	2.5 mm	Sealing Ring	0.315 in	8 mm	PG7	Cable Gland	Light Gray			100 °C	-30 ░C	Polyamide (PA) Nylon	0.492 in	12.5 mm	IP68 - Dust Tight Waterproof	6.5 mm	0.256 "
American Electrical Inc. A1555.21.14	0.256 in	6.5 mm	Sealing Ring	0.433 in	11 mm	PG21	Cable Gland	Light Gray	14 mm	0.551 "	100 °C	-30 ░C	Polyamide (PA) Nylon	1.114 in	28.3 mm	IP68 - Dust Tight Waterproof
American Electrical Inc. A1555.20.08			Sealing Ring	0.354 in	9 mm	M20x1.5	Cable Gland Short Entry	Light Gray			100 °C	-30 ░C	Polyamide (PA) Nylon	0.787 in	20 mm	IP68 - Dust Tight Waterproof	8 mm	0.315 in	3.5 mm	0.138 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 2.16
