DK-V6-EMBD-G-J

Obsolete

AMD

DEV KIT EMBEDDED VIRTEX 6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DK-V6-EMBD-G-J

Obsolete

AMD

DEV KIT EMBEDDED VIRTEX 6

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DK-V6-EMBD-G-J

Contents	Board(s), Cable(s)
For Use With/Related Products	XC6VLX240T
Interconnect System	FMC
Note	J = Japan version does not ship with a power supply
Platform	Virtex-6 LXT FPGA Embedded Japan PCIe Card
Suggested Programming Environment	ISE
Utilized IC / Part	XC6VLX240T

XC6VLX240 Series

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Number of Logic Elements/Cells	Number of I/O	Supplier Device Package	Total RAM Bits	Number of LABs/CLBs	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	For Use With/Related Products	Suggested Programming Environment	Platform	Contents	Utilized IC / Part	Interconnect System	Supplier Device Package [x]	Supplier Device Package [y]	Note
AMD XC6VLX240T-3FFG1156C	1156-BBGA FCBGA	0 °C	85 °C	241152	600	1156-FCBGA (35x35)	15335424 bits	18840	1.05 V	0.95 V	Surface Mount
AMD DK-V6-CONN-G												XC6VLX240T	ISE	Virtex-6 LXT FPGA Connectivity PCIe Card	Board(s) Cable(s) Power Supply	XC6VLX240T	FMC
AMD XC6VLX240T-2FFG1759C	1759-BBGA FCBGA	0 °C	85 °C	241152	720	1759-FCBGA	15335424 bits	18840	1.05 V	0.95 V	Surface Mount							42.5	42.5
AMD DK-V6-EMBD-G-J												XC6VLX240T	ISE	Virtex-6 LXT FPGA Embedded Japan PCIe Card	Board(s) Cable(s)	XC6VLX240T	FMC			J = Japan version does not ship with a power supply
AMD XC6VLX240T-2FF784I	784-BBGA FCBGA	-40 C	100 °C	241152	400	784-FCBGA (29x29)	15335424 bits	18840	1.05 V	0.95 V	Surface Mount
AMD XC6VLX240T-3FFG784C	784-BBGA FCBGA	0 °C	85 °C	241152	400	784-FCBGA (29x29)	15335424 bits	18840	1.05 V	0.95 V	Surface Mount
AMD XC6VLX240T-1FF1156C	1156-BBGA FCBGA	0 °C	85 °C	241152	600	1156-FCBGA (35x35)	15335424 bits	18840	1.05 V	0.95 V	Surface Mount
AMD XC6VLX240T-1FFG784C	784-BBGA FCBGA	0 °C	85 °C	241152	400	784-FCBGA (29x29)	15335424 bits	18840	1.05 V	0.95 V	Surface Mount
AMD XC6VLX240T-3FFG1759C	1759-BBGA FCBGA	0 °C	85 °C	241152	720	1759-FCBGA	15335424 bits	18840	1.05 V	0.95 V	Surface Mount							42.5	42.5
AMD XC6VLX240T-2FFG1156C	1156-BBGA FCBGA	0 °C	85 °C	241152	600	1156-FCBGA (35x35)	15335424 bits	18840	1.05 V	0.95 V	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XC6VLX240 Series

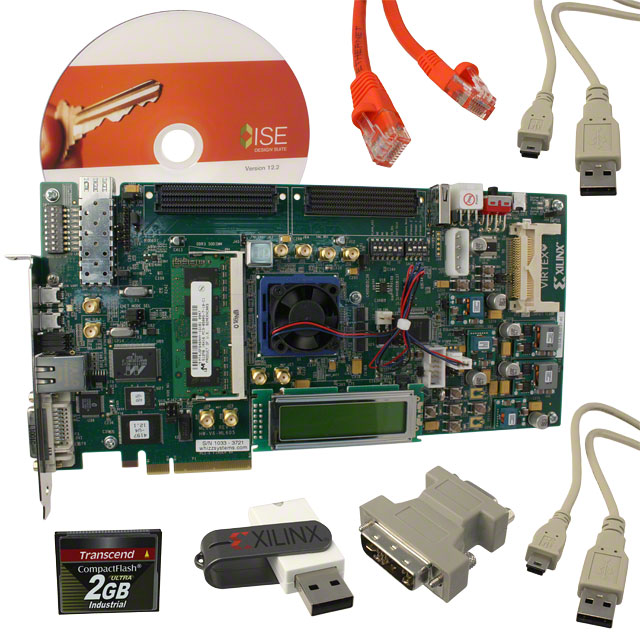

Virtex-6 LXT FPGA Embedded Japan PCIe Card XC6VLX240T Virtex®-6 LXT FPGA Evaluation Board

Documents

Technical documentation and resources
