Q-0303B0003003i

Active

Amphenol Custom Cable

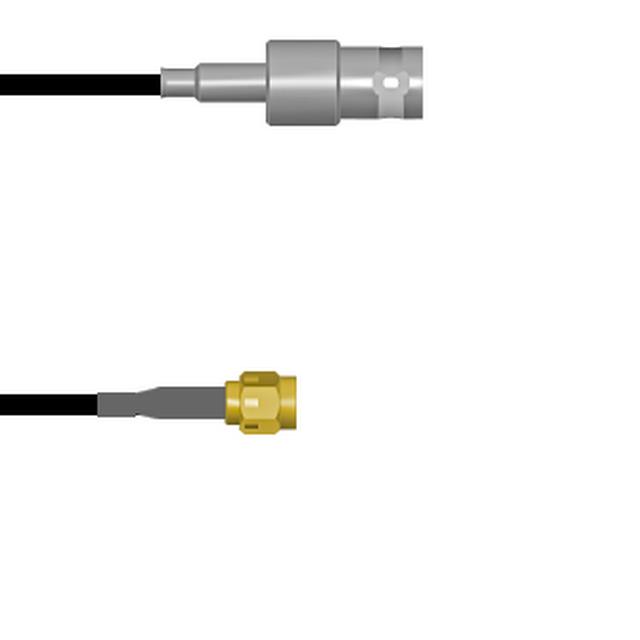

CBL ASSY BNC-SMA JACK-PLUG 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0303B0003003i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-PLUG 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0303B0003003i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0303B0 Series

Part	Frequency - Max [Max]	Length [x]	Length [x]	1st Connector Mounting Type	1st Connector	2nd Connector	Overall Impedance	Features	Style	2nd Contact Gender	1st Contact Gender	Color	Cable Type	2nd Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-0303B0005018i	4 GHz	457.2 mm	457.2 mm	Free Hanging (In-Line)	BNC Jack	SMA Plug	50 Ohms	Shielded	BNC to SMA	Male	Female	Copper	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-0303B0005108i	4 GHz			Free Hanging (In-Line)	BNC Jack	SMA Plug	50 Ohms	Shielded	BNC to SMA	Male	Female	Copper	RG-316	Free Hanging (In-Line)	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-0303B00050.5M	4 GHz			Free Hanging (In-Line)	BNC Jack	SMA Plug	50 Ohms	Shielded	BNC to SMA	Male	Female	Copper	RG-316	Free Hanging (In-Line)	50 cm		19.69 "
Amphenol Custom Cable Q-0303B0003006i	4 GHz			Free Hanging (In-Line)	BNC Jack	SMA Plug	50 Ohms	Shielded	BNC to SMA	Male	Female	Black	RG-174	Free Hanging (In-Line)	152.4 mm		6 in
Amphenol Custom Cable Q-0303B0005009i	4 GHz			Free Hanging (In-Line)	BNC Jack	SMA Plug	50 Ohms	Shielded	BNC to SMA	Male	Female	Copper	RG-316	Free Hanging (In-Line)	228.6 mm		9 "
Amphenol Custom Cable Q-0303B0005003i	4 GHz			Free Hanging (In-Line)	BNC Jack	SMA Plug	50 Ohms	Shielded	BNC to SMA	Male	Female	Copper	RG-316	Free Hanging (In-Line)	76.2 mm		3 in
Amphenol Custom Cable Q-0303B0005002M	4 GHz			Free Hanging (In-Line)	BNC Jack	SMA Plug	50 Ohms	Shielded	BNC to SMA	Male	Female	Copper	RG-316	Free Hanging (In-Line)	2 m	6.6 ft	78.7 in
Amphenol Custom Cable Q-0303B0003012i	4 GHz			Free Hanging (In-Line)	BNC Jack	SMA Plug	50 Ohms	Shielded	BNC to SMA	Male	Female	Black	RG-174	Free Hanging (In-Line)	304.8 mm		12 "
Amphenol Custom Cable Q-0303B0005.75M	4 GHz			Free Hanging (In-Line)	BNC Jack	SMA Plug	50 Ohms	Shielded	BNC to SMA	Male	Female	Copper	RG-316	Free Hanging (In-Line)	750 mm		29.53 "
Amphenol Custom Cable Q-0303B0003003i	4 GHz			Free Hanging (In-Line)	BNC Jack	SMA Plug	50 Ohms	Shielded	BNC to SMA	Male	Female	Black	RG-174	Free Hanging (In-Line)	76.2 mm		3 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 63.05
		25	$ 61.82
		50	$ 60.58
		100	$ 59.35
		250	$ 58.11

Description

General part information

Q-0303B0 Series

Cable Assembly Coaxial BNC to SMA RG-174 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
