134-1000-021

Active

Cinch Connectivity Solutions Johnson

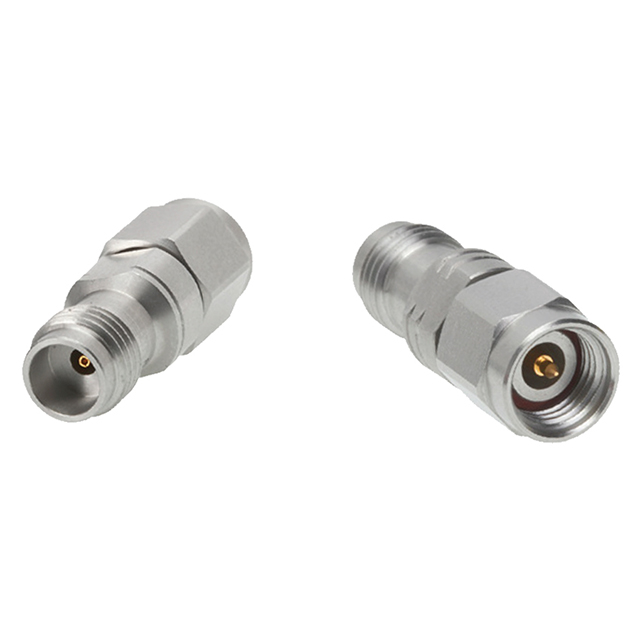

ADAPTER ASSEMBLY, 1.85 MM JACK T

Deep-Dive with AI

Search across all available documentation for this part.

134-1000-021

Active

Cinch Connectivity Solutions Johnson

ADAPTER ASSEMBLY, 1.85 MM JACK T

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	134-1000-021

Adapter Series [Max]	2.92 mm
Adapter Series [Min]	1.85 mm
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	1.85mm Jack, Female Socket
Convert To (Adapter End)	2.92mm (OS-2.9) Plug, Male Pin
Dielectric Material	Polyetherimide (PEI)
Frequency - Max [Max]	46.5 GHz
Impedance	50 Ohms
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

134-1000 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Style	Center Contact Plating	Impedance	Frequency - Max [Max]	Fastening Type	Dielectric Material	Center Contact Material	Mounting Type	Conversion Type	Convert From (Adapter End)	Adapter Series	Adapter Series	Center Gender	Adapter Type	Mating Cycles	Convert To (Adapter End)	Body Material	Convert To (Adapter End)	Body Finish	Convert From (Adapter End)	Adapter Series [Min]	Adapter Series [Max]	Insertion Loss
Cinch Connectivity Solutions Johnson 134-1000-040	-65 ░C	165 °C	Straight	Gold	50 Ohms	40 GHz	Snap-On Threaded	Polyetherimide (PEI)	Beryllium Copper	Free Hanging (In-Line)	Between Series	SMP3 Plug Male Pin	2.92 mm	SMP3	Male to Male	Plug to Plug	100 500	2.92mm (OS-2.9) Plug Male Pin	Stainless Steel
Cinch Connectivity Solutions Johnson 134-1000-043	-65 ░C	165 °C	Straight	Gold	50 Ohms	40 GHz	Snap-On Threaded	Polyetherimide (PEI)	Beryllium Copper	Free Hanging (In-Line)	Between Series	SMP3 Jack Female Socket	2.92 mm	SMP3	Female to Female	Jack to Jack	100 500	OS-2.9 Jack Female Socket	Beryllium Copper Stainless Steel	2.92 mm	Gold
Cinch Connectivity Solutions Johnson 134-1000-036	-65 ░C	165 °C	Straight	Gold	50 Ohms	50 GHz	Snap-On Threaded	Polyetherimide (PEI)	Beryllium Copper	Free Hanging (In-Line)	Between Series	SMP3 Plug Male Pin	2.4 mm	SMP3	Male to Male	Plug to Plug	100 500	2.4mm (APC-2.4 OS-50) Plug Male Pin	Stainless Steel
Cinch Connectivity Solutions Johnson 134-1000-023	-65 ░C	165 °C	Straight	Gold	50 Ohms	46.5 GHz		Polyetherimide (PEI)	Beryllium Copper	Free Hanging (In-Line)	Between Series	Plug Male Pin			Male to Male	Plug to Plug	500	2.92mm (OS-2.9) Plug Male Pin	Stainless Steel			1.85 mm	1.85 mm	2.92 mm	0.6 dB
Cinch Connectivity Solutions Johnson 134-1000-022	-65 ░C	165 °C	Straight	Gold	50 Ohms	46.5 GHz		Polyetherimide (PEI)	Beryllium Copper	Free Hanging (In-Line)	Between Series	Plug Male Pin				Plug to Jack	500	OS-2.9 Jack Female Socket	Stainless Steel	2.92 mm		1.85 mm	1.85 mm	2.92 mm	0.6 dB
Cinch Connectivity Solutions Johnson 134-1000-021	-65 ░C	165 °C	Straight	Gold	50 Ohms	46.5 GHz		Polyetherimide (PEI)	Beryllium Copper	Free Hanging (In-Line)	Between Series	1.85mm Jack Female Socket				Plug to Jack	500	2.92mm (OS-2.9) Plug Male Pin	Stainless Steel				1.85 mm	2.92 mm	0.6 dB
Cinch Connectivity Solutions Johnson 134-1000-041	-65 ░C	165 °C	Straight	Gold	50 Ohms	40 GHz	Snap-On Threaded	Polyetherimide (PEI)	Beryllium Copper	Free Hanging (In-Line)	Between Series	SMP3 Jack Female Socket	2.92 mm	SMP3		Plug to Jack	100 500	2.92mm (OS-2.9) Plug Male Pin	Beryllium Copper Stainless Steel		Gold
Cinch Connectivity Solutions Johnson 134-1000-033	-65 ░C	165 °C	Straight	Gold	50 Ohms	67 GHz	Snap-On Threaded	Polyetherimide (PEI)	Beryllium Copper	Free Hanging (In-Line)	Between Series	SMP3 Jack Female Socket	1.85 mm	SMP3		Plug to Jack	100 500	1.85mm Plug Male Pin	Beryllium Copper Stainless Steel		Gold
Cinch Connectivity Solutions Johnson 134-1000-034	-65 ░C	165 °C	Straight	Gold	50 Ohms	67 GHz	Snap-On Threaded	Polyetherimide (PEI)	Beryllium Copper	Free Hanging (In-Line)	Between Series	SMP3 Plug Male Pin	1.85 mm	SMP3		Plug to Jack	100 500	1.85mm Jack Female Socket	Stainless Steel
Cinch Connectivity Solutions Johnson 134-1000-039	-65 ░C	165 °C	Straight	Gold	50 Ohms	50 GHz	Snap-On Threaded	Polyetherimide (PEI)	Beryllium Copper	Free Hanging (In-Line)	Between Series	SMP3 Jack Female Socket	2.4 mm	SMP3	Female to Female	Jack to Jack	100 500		Beryllium Copper Stainless Steel	2.4 mm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 248.46
		10	$ 230.24
		25	$ 221.96

Description

General part information

134-1000 Series

Adapter Coaxial Connector 1.85mm Jack, Female Socket To 2.92mm (OS-2.9) Plug, Male Pin 50 Ohms
