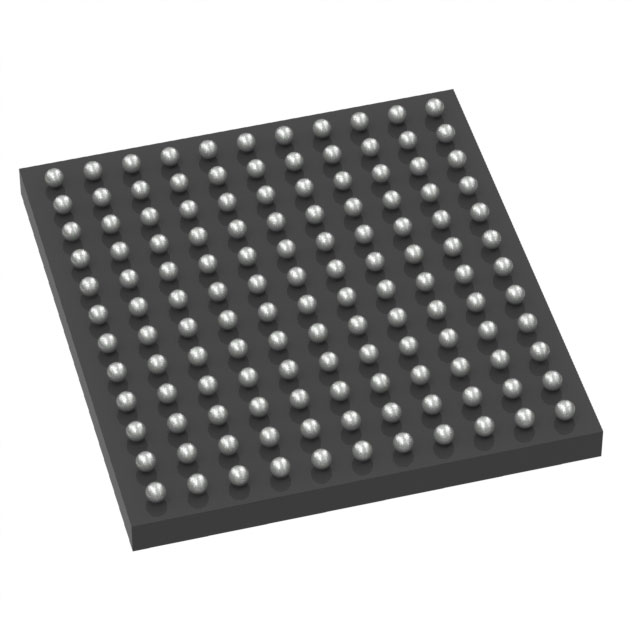

WL1831GYFVR
ActiveWILINK™8 SINGLE-BAND INDUSTRIAL WI-FI®, BLUETOOTH® AND BLUETOOTH LOW ENERGY TRANSCEIVER
Deep-Dive with AI
Search across all available documentation for this part.
WL1831GYFVR
ActiveWILINK™8 SINGLE-BAND INDUSTRIAL WI-FI®, BLUETOOTH® AND BLUETOOTH LOW ENERGY TRANSCEIVER
Technical Specifications
Parameters and characteristics for this part
| Specification | WL1831GYFVR |
|---|---|
| Antenna Type | Antenna Not Included |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Protocol | Bluetooth v5.1, 802.11b/g/n |
| RF Family/Standard | WiFi, Bluetooth |
| Serial Interfaces | SDIO, HCI, UART |
| Utilized IC / Part | WL18x1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.23 | |
| 10 | $ 6.38 | |||
| 25 | $ 5.65 | |||
| 100 | $ 4.83 | |||
| 250 | $ 4.43 | |||
| 500 | $ 4.18 | |||
| 1000 | $ 3.98 | |||
| Digi-Reel® | 1 | $ 9.23 | ||
| 10 | $ 6.38 | |||
| 25 | $ 5.65 | |||
| 100 | $ 4.83 | |||
| 250 | $ 4.43 | |||
| 500 | $ 4.18 | |||
| 1000 | $ 3.98 | |||
| Tape & Reel (TR) | 2500 | $ 3.88 | ||
| Texas Instruments | LARGE T&R | 1 | $ 5.70 | |
| 100 | $ 4.65 | |||
| 250 | $ 3.65 | |||
| 1000 | $ 3.10 | |||
Description
General part information
WL1831MOD Series
The WiLink™ 8 WL18x1 is a highly integrated single-chip WLAN, Bluetooth, and Bluetooth Low Energy device that forms a complete stand-alone communication system.
The device is the 8th-generation connectivity combo chip from Texas Instruments. As such, the WL18x1 is based upon proven technology and complements the TI integrated devices for connectivity portfolio. This device is ideal for use in mobile devices, mobile computer and catalog embedded device applications due to its low current, small area and coexistence-friendly features. TI offers drivers for high-level operating systems such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS are supported through third parties.
The WiLink™ 8 WL18x1 is a highly integrated single-chip WLAN, Bluetooth, and Bluetooth Low Energy device that forms a complete stand-alone communication system.
