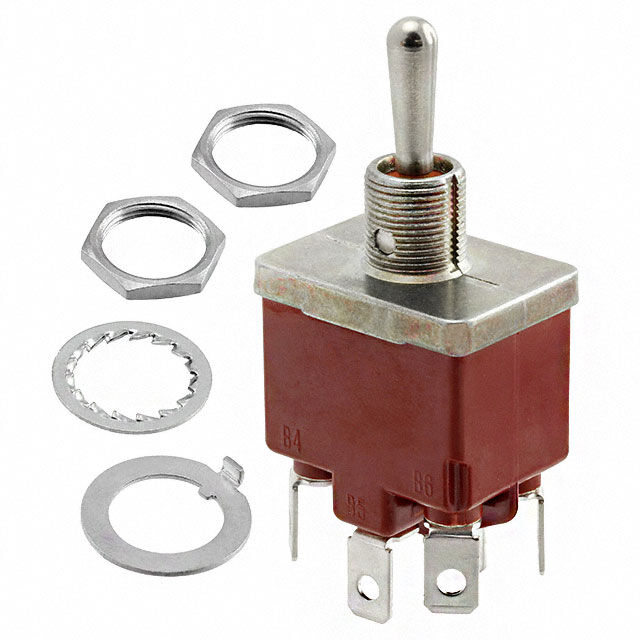

CT49021N000

Active

APEM

SWITCH TOGGLE DPDT 10A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE DPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	CT49021N000

Actuator Length [x]	17.5 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	15 A, 10 A
Electrical Life	10000 Cycles
Features	Sealed - Fully
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off-On
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Electrical Life	Voltage Rating - AC	Features	Switch Function	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Illumination	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Bushing Thread	Circuit	Ingress Protection	Actuator Material	Actuator Type
APEM CT49021N000	10000 Cycles	125 V	Sealed - Fully	On-Off-On	17.5 mm	85 °C	-40 °C	10 A 15 A	Non-Illuminated	28 V	12.2 mm	15/32-32	DPDT	IP67 - Dust Tight Waterproof	Nickel Plated	Standard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
