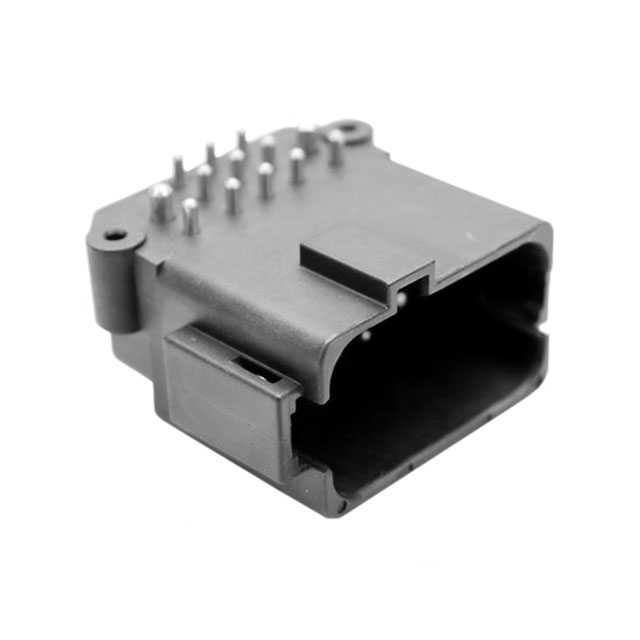

AT1612-13PBNF13

Active

Amphenol Sine Systems Corp

CONN RCPT 13POS

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT 13POS

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Contact Type	Contact Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Insulation Material	Features	Color	Number of Positions	Mounting Type	Insulation Color	Style	Termination	Contact Finish - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Material	Shrouding	Contact Shape	Contact Finish - Post	Current Rating (Amps)	Ingress Protection	Contact Length - Post	Contact Length - Post
Amphenol Sine Systems Corp AT1612-13PB-RDG	Latch Holder	Male Pin	Crimp	Receptacle	-55 °C	125 °C	Contacts Not Included	Thermoplastic	Gasket	Black	13
Amphenol Sine Systems Corp AT1612-13SB-RD	Latch Lock	Female Socket	Crimp	Plug	-55 °C	125 °C	Contacts Not Included	Thermoplastic		Black	13	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT1612-13PBNF13		Male Pin		Receptacle	-55 °C	125 °C		Thermoplastic	Sealed		13	Through Hole Right Angle	Black	Board to Cable/Wire	Solder	Nickel	0.874 in	22.2 mm	All	Copper Alloy	Shrouded - 4 Wall	Circular	Nickel	13A 25A	IP67	0.114 in	2.9 mm
Amphenol Sine Systems Corp AT1612-13PB-G	Latch Holder	Male Pin	Crimp	Receptacle	-55 °C	125 °C	Contacts Not Included	Thermoplastic	Gasket	Black	13
Amphenol Sine Systems Corp AT1612-13PB	Latch Holder	Male Pin	Crimp	Receptacle	-55 °C	125 °C	Contacts Not Included	Thermoplastic		Black	13
Amphenol Sine Systems Corp AT1612-13PB-RD	Latch Holder	Male Pin	Crimp	Receptacle	-55 °C	125 °C	Contacts Not Included	Thermoplastic		Black	13

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 13 position
