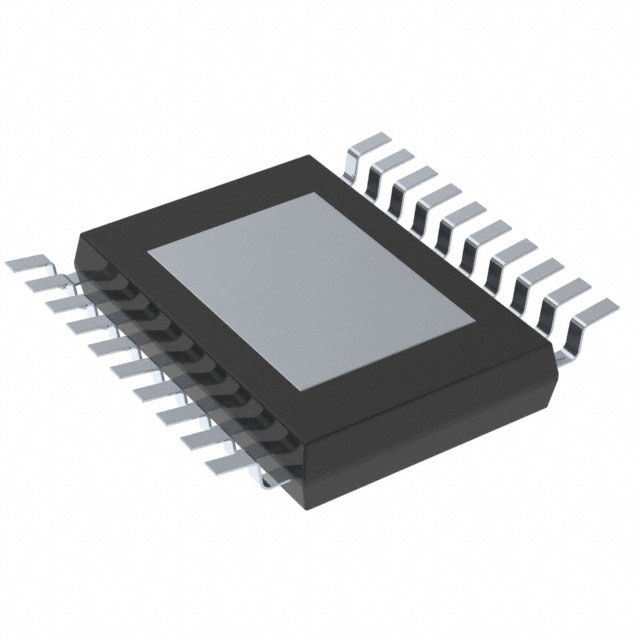

BD18377EFV-ME2
NRNDRohm Semiconductor
IC LED DRV LIN PWM 50MA 20HTSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BD18377EFV-ME2
NRNDRohm Semiconductor
IC LED DRV LIN PWM 50MA 20HTSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BD18377EFV-ME2 |
|---|---|
| Current - Output / Channel | 50 mA |
| Dimming | PWM |
| Frequency | 1.25 MHz |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 12 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4.4 mm, 0.173 in |
| Package / Case | 20-VSSOP, Exposed Pad |
| Qualification | AEC-Q100 |
| Supplier Device Package | 20-HTSSOP-B |
| Topology | Shift Register |
| Type | Linear |
| Voltage - Output | 10 V |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.71 | |
| Digi-Reel® | 1 | $ 2.71 | ||
| Tape & Reel (TR) | 2500 | $ 1.24 | ||
| 5000 | $ 1.19 | |||
Description
General part information
BD18377 Series
LED Driver IC 12 Output Linear Shift Register PWM Dimming 50mA 20-HTSSOP-B
