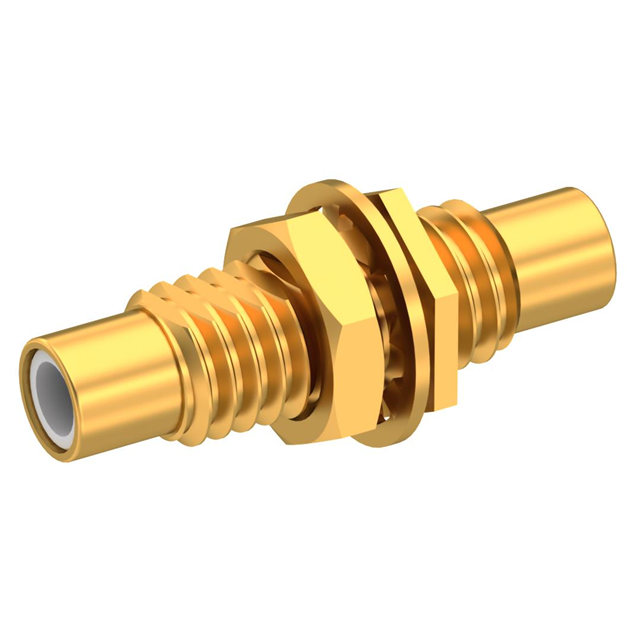

5822-1501-000

Active

Radiall USA, Inc.

SMC MM STR BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC MM STR BHD

Technical Specifications

Parameters and characteristics for this part

Specification	5822-1501-000

Adapter Series	SMC to SMC
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMC Jack, Male Pin
Convert To (Adapter End)	SMC Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Style	Straight

Part	Body Material	Mounting Feature	Mating Cycles	Center Contact Material	Adapter Type	Style	Body Finish	Center Contact Plating	Convert From (Adapter End)	Fastening Type	Conversion Type	Impedance	Dielectric Material	Center Gender	Frequency - Max [Max]	Convert To (Adapter End)	Adapter Series
Radiall USA, Inc. 5822-1501-000	Brass	Bulkhead	500	Beryllium Copper	Jack to Jack	Straight	Gold	Gold	SMC Jack Male Pin	Snap-On	Same Series	50 Ohms	Polytetrafluoroethylene (PTFE)	Male to Male	10 GHz	Male Pin SMC Jack	SMC to SMC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMC Jack, Male Pin To SMC Jack, Male Pin 50 Ohms
