1N4754A_R2_00001
ActivePanjit International Inc.

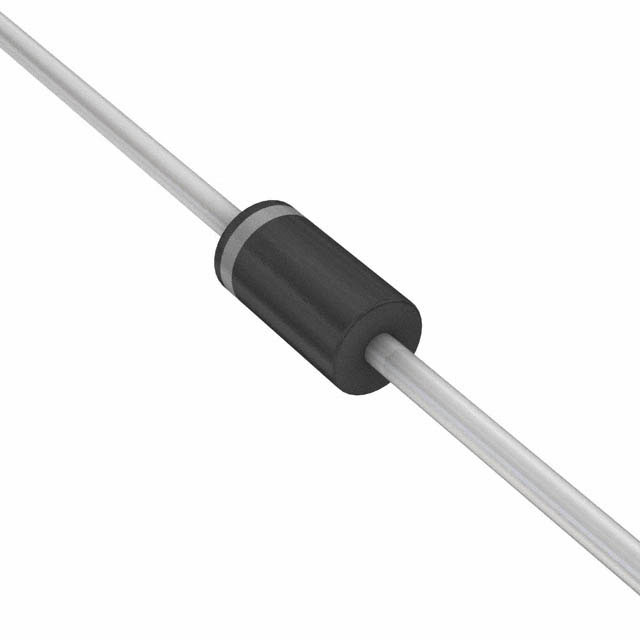

DIODE ZENER 39V 1W DO41
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1N4754A_R2_00001
ActivePanjit International Inc.
DIODE ZENER 39V 1W DO41
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N4754A_R2_00001 |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA |
| Impedance (Max) (Zzt) [Max] | 60 Ohms |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | DO-204AL, DO-41, Axial |
| Power - Max [Max] | 1 W |
| Supplier Device Package | DO-41 |
| Tolerance | 5 % |
| Voltage - Zener (Nom) (Vz) | 39 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| Tape & Reel (TR) | 500000 | $ 0.02 | ||
Description
General part information
1N4754 Series
Zener Diode 39 V 1 W ±5% Through Hole DO-41
