415-0200-120

Active

Cinch Connectivity Solutions Johnson

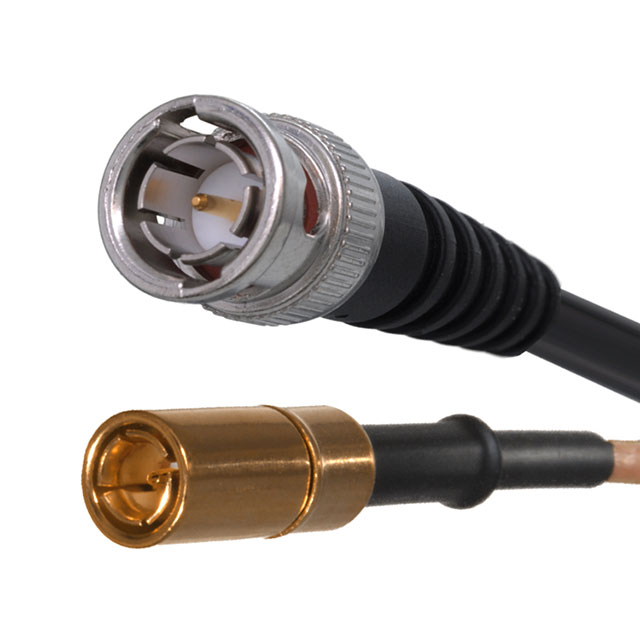

CBL ASSY BNC-SMB PLUG-PLUG 10'

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

CBL ASSY BNC-SMB PLUG-PLUG 10'

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Impedance	Cable Type	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector	Color	1st Contact Gender	2nd Connector	Features	Overall Impedance	Cable Impedance	Length	Length	Length	2nd Contact Gender	1st Connector Mounting Type	Style
Cinch Connectivity Solutions Johnson 415-0200-M2.0	-40 °C	80 C	50 Ohms	RG-174	Free Hanging (In-Line)	1 GHz	BNC Plug	Black	Male	SMB Plug	Shielded	50 Ohms	50 Ohms	6.6 ft	78.7 in	2 m	Female	Free Hanging (In-Line)	BNC to SMB
Cinch Connectivity Solutions Johnson 415-0200-036	-40 °C	80 C	50 Ohms	RG-174	Free Hanging (In-Line)	1 GHz	BNC Plug	Black	Male	SMB Plug	Shielded	50 Ohms	50 Ohms		36 in	91.44 cm	Female	Free Hanging (In-Line)	BNC to SMB
Cinch Connectivity Solutions Johnson 415-0200-060	-40 °C	80 C	50 Ohms	RG-174	Free Hanging (In-Line)	1 GHz	BNC Plug	Black	Male	SMB Plug	Shielded	50 Ohms	50 Ohms	5 ft	5 '	1.5 m	Female	Free Hanging (In-Line)	BNC to SMB
Cinch Connectivity Solutions Johnson 415-0200-120	-40 °C	80 C	50 Ohms	RG-174	Free Hanging (In-Line)	1 GHz	BNC Plug	Black	Male	SMB Plug	Shielded	50 Ohms	50 Ohms	10 '	10 ft	3 m	Female	Free Hanging (In-Line)	BNC to SMB
Cinch Connectivity Solutions Johnson 415-0200-M1.0	-40 °C	80 C	50 Ohms	RG-174	Free Hanging (In-Line)	1 GHz	BNC Plug	Black	Male	SMB Plug	Shielded	50 Ohms	50 Ohms	3.3 ft	39.4 in	1 m	Female	Free Hanging (In-Line)	BNC to SMB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMB RG-174 120.0" (3.0m) 10.0'

Technical documentation and resources

No documents available
