SY100EP16UMG-TR

Active

Microchip Technology

SINGLE TRANSMITTER/RECEIVER 8-PIN MLF T/R

Search across all available documentation for this part.

Active

Microchip Technology

SINGLE TRANSMITTER/RECEIVER 8-PIN MLF T/R

Technical Specifications

Parameters and characteristics for this part

Specification	SY100EP16UMG-TR

Logic Type	Differential Receiver/Driver
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

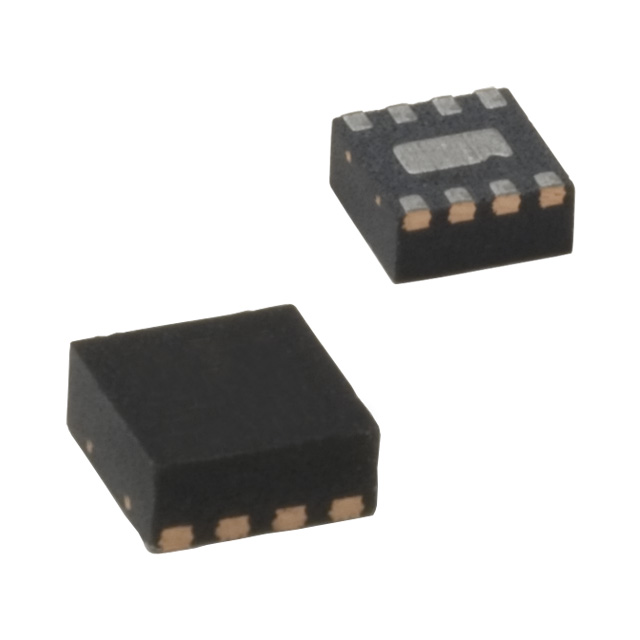

Package / Case	8-MLF®, 8-VFDFN Exposed Pad
Supplier Device Package	8-MLF® (2x2)
Supply Voltage [Max]	3.6 V
Supply Voltage [Min]	2.375 V

Part	Mounting Type	Logic Type	Supply Voltage [Min]	Supply Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Package / Case [custom]	Package / Case	Package / Case [y]	Package / Case [x]
Microchip Technology SY100EP16VKG	Surface Mount	Differential Receiver/Driver	3 V	5.5 V	85 °C	-40 °C	8-MSOP	8-MSOP 8-TSSOP	0.118 in	3 mm
Microchip Technology SY100EP16VMG-TR	Surface Mount	Differential Receiver/Driver	3 V	5.5 V	85 °C	-40 °C	8-MLF® (2x2)	8-MLF® 8-VFDFN Exposed Pad
Microchip Technology SY100EP16UMG-TR	Surface Mount	Differential Receiver/Driver	2.375 V	3.6 V	85 °C	-40 °C	8-MLF® (2x2)	8-MLF® 8-VFDFN Exposed Pad
Microchip Technology SY100EP16VZG	Surface Mount	Differential Receiver/Driver	3 V	5.5 V	85 °C	-40 °C	8-SOIC	8-SOIC			3.9 mm	0.154 in
Microchip Technology SY100EP16UZG-TR	Surface Mount	Differential Receiver/Driver	2.375 V	3.6 V	85 °C	-40 °C	8-SOIC	8-SOIC			3.9 mm	0.154 in
Microchip Technology SY100EP16VSKY	Surface Mount	Differential Receiver/Driver	3 V	5.5 V	85 °C	-40 °C	8-MSOP-EP	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm
Microchip Technology SY100EP16UZG	Surface Mount	Differential Receiver/Driver	2.375 V	3.6 V	85 °C	-40 °C	8-SOIC	8-SOIC			3.9 mm	0.154 in
Microchip Technology SY100EP16VZG-TR	Surface Mount	Differential Receiver/Driver	3 V	5.5 V	85 °C	-40 °C	8-SOIC	8-SOIC			3.9 mm	0.154 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Differential Receiver/Driver IC 8-MLF® (2x2)
