1411176

Active

Phoenix Contact

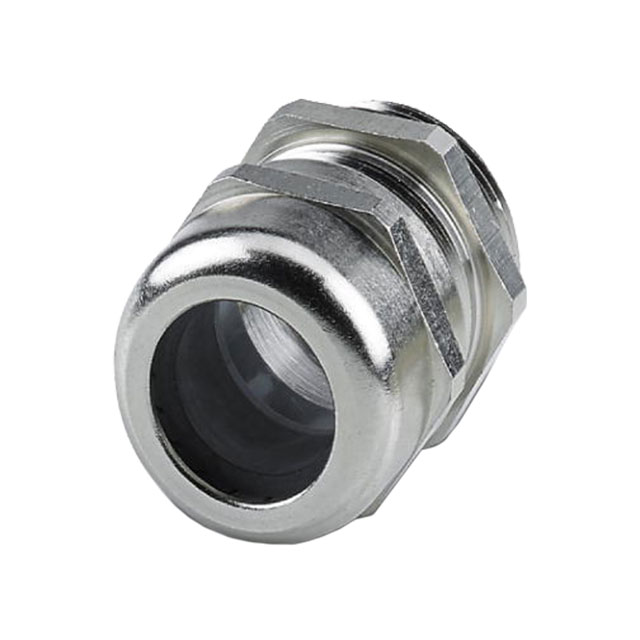

CABLE GLND 18.01-25MM PG29 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLND 18.01-25MM PG29 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1411176

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max)	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	PG29
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Type	Color	Thread Length	Thread Length	Includes	Thread Size	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Operating Temperature [Max]	Operating Temperature [Min]
Phoenix Contact 1424501	0.709 in	18.01 mm	IP68 - Dust Tight Waterproof	Cable Gland	Black	0.433 in	11 mm	Seal	PG29	Polyamide (PA) Nylon	0.984 in	25 mm	100 °C	-40 °C
Phoenix Contact 1411176	0.709 in	18.01 mm	IP66 IP68 IP69	Cable Gland	Silver	0.315 in	8 mm	O-Ring Seal	PG29	Brass Nickel Plated	0.984 in	25 mm	100 °C	-40 °C
Phoenix Contact 1424491	0.709 in	18.01 mm	IP68 - Dust Tight Waterproof	Cable Gland	Gray	0.433 in	11 mm	Seal	PG29	Polyamide (PA) Nylon	0.984 in	25 mm	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.39

General part information

Cable Gland Brass, Nickel Plated PG29 Silver
