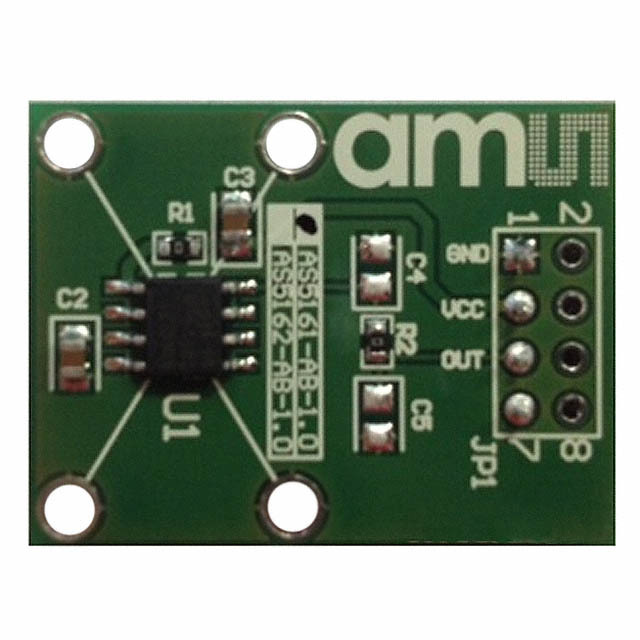

AS5161-SO_EK_AB

Active

ams-OSRAM USA INC.

ADAPTER BOARD FOR AS5161

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

ADAPTER BOARD FOR AS5161

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Range	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplied Contents	Sensor Type	Embedded	Utilized IC / Part	Termination Style	Actuator Type	Mounting Type	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Output	For Measuring	Technology	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]
ams-OSRAM USA INC. AS5161-SO_EK_AB	360 °	PWM	4.5 V	5.5 V	Accessories Board(s)	Magnetic Rotary Position		AS5161
ams-OSRAM USA INC. AS5161-HSOP			4.5 V	5.5 V					Gull Wing	External Magnet Not Included	Surface Mount	360 °	0 °	PWM	Angle	Hall Effect	8-SOIC	8-SOIC	3.9 mm	0.154 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.76

General part information

AS5161 - Magnetic, Rotary Position Sensor Evaluation Board

Technical documentation and resources

No documents available
