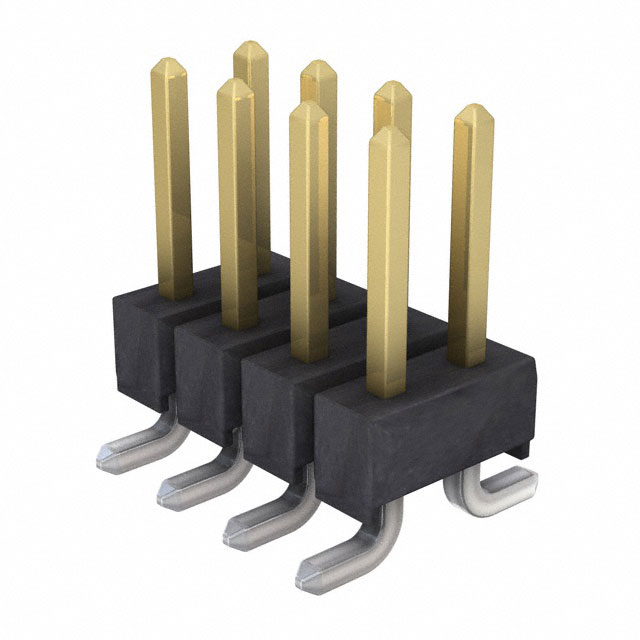

M20-8760442P

Active

Harwin Inc.

4+4 POS. MALE DIL VERTICAL SMT CONN. (P+P) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20 Series Spec Sheet M20-003 +1

M20-8760442P

Active

Harwin Inc.

4+4 POS. MALE DIL VERTICAL SMT CONN. (P+P) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20 Series Spec Sheet M20-003 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-8760442P

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	12.63 mm, 18.13 mm, 12.23 mm, 11.53 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

M20-876 Series

Part	Mounting Type	Insulation Material	Voltage Rating	Shrouding	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Material	Mated Stacking Heights	Contact Finish - Mating	Insulation Height	Insulation Height	Termination	Connector Type	Number of Positions	Current Rating (Amps)	Features	Number of Positions Loaded	Insulation Color	Style	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Shape	Fastening Type	Number of Rows	Number of Positions
Harwin Inc. M20-8760442P	Surface Mount	Nylon 6T Polyamide (PA6T)	250 VDC	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Tin	Brass	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Gold	0.1 in	2.54 mm	Solder	Cuttable Header	8	3 A	Pick and Place	All	Black	Board to Board Cable	0.228 in	5.8 mm	-40 °C	105 ░C	2.54 mm	0.1 in	Male Pin	Square	Push-Pull	2
Harwin Inc. M20-8760746R	Surface Mount	Nylon 6T Polyamide (PA6T)	250 VAC	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Tin	Brass			0.1 in	2.54 mm	Solder	Cuttable Header	14	3 A		All	Black	Board to Board Cable	0.228 in	5.8 mm	-40 °C	105 ░C	2.54 mm	0.1 in	Male Pin	Square	Push-Pull	2
Harwin Inc. M20-8760846	Surface Mount	Nylon 6T Polyamide (PA6T)	250 VDC	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Tin	Brass	11.53 mm 12.23 mm 12.63 mm 18.13 mm		0.1 in	2.54 mm	Solder	Cuttable Header		3 A		All	Black	Board to Board Cable	0.228 in	5.8 mm	-40 °C	105 ░C	2.54 mm	0.1 in	Male Pin	Square	Push-Pull	2	16
Harwin Inc. M20-8760546	Surface Mount	Nylon 6T Polyamide (PA6T)	250 VDC	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Tin	Brass	11.53 mm 12.23 mm 12.63 mm 18.13 mm		0.1 in	2.54 mm	Solder	Cuttable Header	10	3 A		All	Black	Board to Board Cable	0.228 in	5.8 mm	-40 °C	105 ░C	2.54 mm	0.1 in	Male Pin	Square	Push-Pull	2
Harwin Inc. M20-8760246P	Surface Mount	Nylon 6T Polyamide (PA6T)	250 VDC	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Tin	Brass	11.53 mm 12.23 mm 12.63 mm 18.13 mm		0.1 in	2.54 mm	Solder	Cuttable Header	4	3 A	Pick and Place	All	Black	Board to Board Cable	0.228 in	5.8 mm	-40 °C	105 ░C	2.54 mm	0.1 in	Male Pin	Square	Push-Pull	2
Harwin Inc. M20-8760446R	Surface Mount	Nylon 6T Polyamide (PA6T)	250 VAC	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Tin	Brass			0.1 in	2.54 mm	Solder	Cuttable Header	8	3 A		All	Black	Board to Board Cable	0.228 in	5.8 mm	-40 °C	105 ░C	2.54 mm	0.1 in	Male Pin	Square	Push-Pull	2
Harwin Inc. M20-8760842P	Surface Mount	Nylon 6T Polyamide (PA6T)	250 VDC	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Tin	Brass	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Gold	0.1 in	2.54 mm	Solder	Cuttable Header		3 A	Pick and Place	All	Black	Board to Board Cable	0.228 in	5.8 mm	-40 °C	105 ░C	2.54 mm	0.1 in	Male Pin	Square	Push-Pull	2	16
Harwin Inc. M20-8761842	Surface Mount	Nylon 6T Polyamide (PA6T)	250 VDC	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Tin	Brass	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Gold	0.1 in	2.54 mm	Solder	Cuttable Header	36	3 A		All	Black	Board to Board Cable	0.228 in	5.8 mm	-40 °C	105 ░C	2.54 mm	0.1 in	Male Pin	Square	Push-Pull	2
Harwin Inc. M20-8762042	Surface Mount	Nylon 6T Polyamide (PA6T)	250 VDC	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Tin	Brass	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Gold	0.1 in	2.54 mm	Solder	Cuttable Header	40	3 A		All	Black	Board to Board Cable	0.228 in	5.8 mm	-40 °C	105 ░C	2.54 mm	0.1 in	Male Pin	Square	Push-Pull	2
Harwin Inc. M20-8760742R	Surface Mount	Nylon 6T Polyamide (PA6T)	250 VDC	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Tin	Brass	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Gold	0.1 in	2.54 mm	Solder	Cuttable Header	14	3 A		All	Black	Board to Board Cable	0.228 in	5.8 mm	-40 °C	105 ░C	2.54 mm	0.1 in	Male Pin	Square	Push-Pull	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	4020	$ 0.37
Newark	Each	1000	$ 0.43
