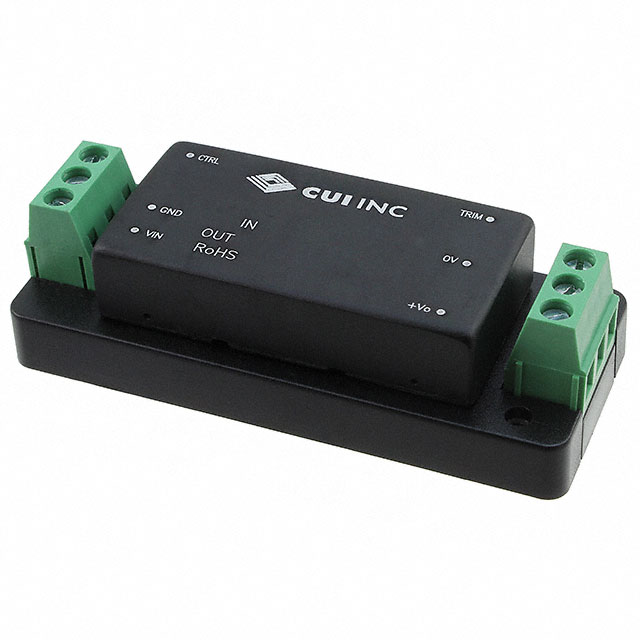

PQA50-D24-S24-T

Obsolete

CUI Inc.

MODULE DC-DC 24VIN 1-OUT 24V 2.083A 50W 6-PIN

Deep-Dive with AI

Search across all available documentation for this part.

PQA50-D24-S24-T

Obsolete

CUI Inc.

MODULE DC-DC 24VIN 1-OUT 24V 2.083A 50W 6-PIN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PQA50-D24-S24-T

Current - Output (Max) [Max]	2.08 A
Efficiency	91 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	50 W
Size / Dimension [x]	2.99 in
Size / Dimension [x]	76 mm
Size / Dimension [y]	31.5 mm
Size / Dimension [y]	1.24 in
Size / Dimension [z]	21.2 mm
Size / Dimension [z]	0.84 "
Type	Enclosed
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	24 V

PQA50 Series

Part	Voltage - Input (Min) [Min]	Power (Watts)	Package / Case	Control Features	Type	Mounting Type	Current - Output (Max) [Max]	Features	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Standard Number	Approval Agency
CUI Inc. PQA50-D48-S15-D	36 V	50 W	6-DIP Module	Active High Enable	Isolated Module	Through Hole	3.333 A	OCP OVP Remote On/Off SCP UVLO	75 V	1	93 %	15 V	1.5 kV	85 °C	-40 °C	ITE (Commercial)	25.4 mm	50.8 mm	0.47 "	11.8 mm	25.4 mm	2 in
CUI Inc. PQA50-D24-S12-T	18 V	50 W			Enclosed	Chassis Mount	4.17 A		36 V	1	91 %	12 V	1.5 kV	85 °C	-40 °C		31.5 mm	76 mm	0.84 "	21.2 mm	1.24 in	2.99 in
CUI Inc. PQA50-D24-S12-D	18 V	50 W	6-DIP Module	Active High Enable	Isolated Module	Through Hole	4.167 A	OCP OVP Remote On/Off SCP UVLO	36 V	1	93 %	12 V	1.5 kV	85 °C	-40 °C	ITE (Commercial)	25.4 mm	50.8 mm	0.47 "	11.8 mm	25.4 mm	2 in
CUI Inc. PQA50-D24-S24-T	18 V	50 W			Enclosed	Chassis Mount	2.08 A		36 V	1	91 %	24 V	1.5 kV	85 °C	-40 °C		31.5 mm	76 mm	0.84 "	21.2 mm	1.24 in	2.99 in
CUI Inc. PQA50-D24-S15-T	18 V	50 W			Enclosed	Chassis Mount	3.33 A		36 V	1	91 %	15 V	1.5 kV	85 °C	-40 °C		31.5 mm	76 mm	0.84 "	21.2 mm	1.24 in	2.99 in
CUI Inc. PQA50-D48-S12-T	36 V	50 W			Enclosed	Chassis Mount	4.17 A		75 V	1	91 %	12 V	1.5 kV	85 °C	-40 °C		31.5 mm	76 mm	0.84 "	21.2 mm	1.24 in	2.99 in	60950-1	CB Scheme IEC
CUI Inc. PQA50-D48-S3-D	36 V	33 W	6-DIP Module		Isolated Module	Through Hole	10 A	OCP OTP OVP Remote On/Off SCP	75 V	1	91 %	3.3 V	1.5 kV	85 °C	-40 °C	ITE (Commercial)	25.4 mm	50.8 mm	0.46 in	11.8 mm	25.4 mm	2 in
CUI Inc. PQA50-D48-S5-D	36 V	50 W	6-DIP Module	Active High Enable	Isolated Module	Through Hole	10 A	OCP OVP Remote On/Off SCP UVLO	75 V	1	93 %	5 V	1.5 kV	85 °C	-40 °C	ITE (Commercial)	25.4 mm	50.8 mm	0.47 "	11.8 mm	25.4 mm	2 in
CUI Inc. PQA50-D24-S5-D	18 V	50 W	6-DIP Module	Active High Enable	Isolated Module	Through Hole	10 A	OCP OVP Remote On/Off SCP UVLO	36 V	1	93 %	5 V	1.5 kV	85 °C	-40 °C	ITE (Commercial)	25.4 mm	50.8 mm	0.47 "	11.8 mm	25.4 mm	2 in
CUI Inc. PQA50-D48-S12-D	36 V	50 W	6-DIP Module	Active High Enable	Isolated Module	Through Hole	4.167 A	OCP OVP Remote On/Off SCP UVLO	75 V	1	93 %	12 V	1.5 kV	85 °C	-40 °C	ITE (Commercial)	25.4 mm	50.8 mm	0.47 "	11.8 mm	25.4 mm	2 in	60950-1	CB Scheme IEC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 124.68
		5	$ 117.55
		24	$ 110.98

Description

General part information

PQA50 Series

Enclosed DC DC Converter 1 Output 24V 2.08A 36V Input

Documents

Technical documentation and resources

No documents available
