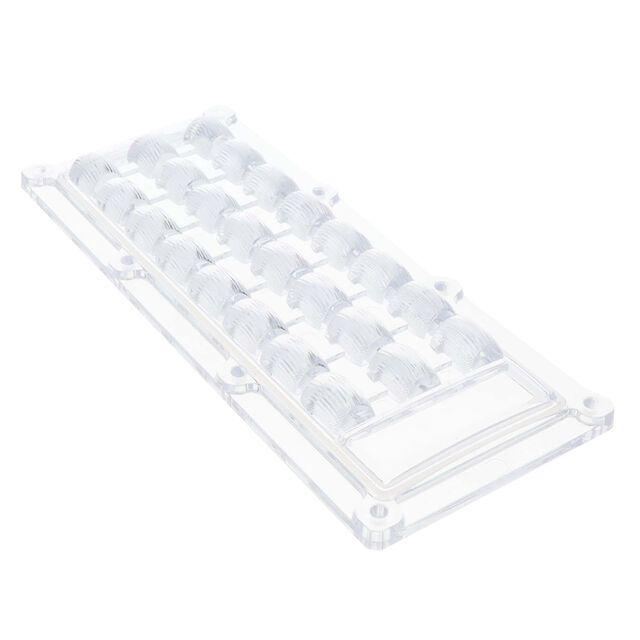

CS18306_HB-IP-24-O-PC
ActiveLEDiL
ASSEMBLY RECTANG 24 POS 173.0 X 71.4MM (/ 13 [FOAM TRAY] ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS18306_HB-IP-24-O-PC
ActiveLEDiL
ASSEMBLY RECTANG 24 POS 173.0 X 71.4MM (/ 13 [FOAM TRAY] ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS18306_HB-IP-24-O-PC |
|---|---|
| Color | Clear |
| Lens Size [x] | 173.27 mm |
| Lens Size [y] | 71.67 mm |
| Lens Style | Rectangle with Flat Top |
| Material | Polycarbonate |
| Mounting Type | Screw |
| Number of LEDs | 24 |
| Optical Pattern | Elliptical/Oval |
| Type | Lens |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CS18306 Series
Lens Clear 34° ~ 70° Elliptical/Oval Screw
