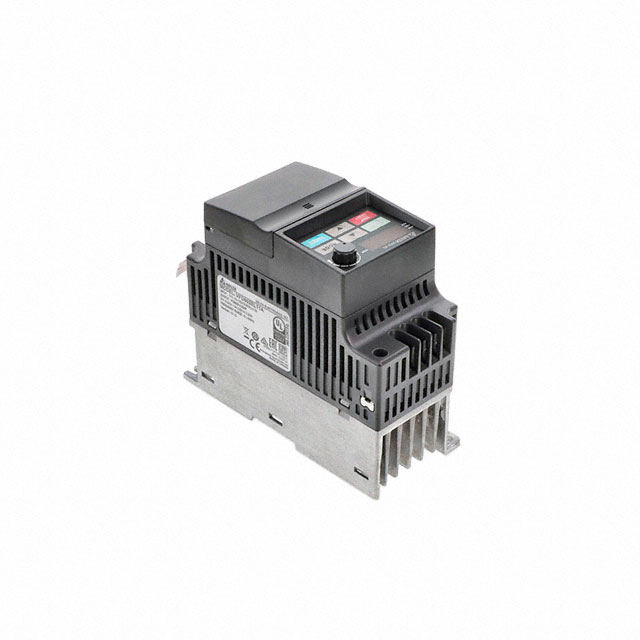

VFD002EL11A

Obsolete

Delta Electronics/Industrial Automation

VFD-EL, 1/4HP 115V, MICRO DRIVE

Search across all available documentation for this part.

Obsolete

Delta Electronics/Industrial Automation

VFD-EL, 1/4HP 115V, MICRO DRIVE

Technical Specifications

Parameters and characteristics for this part

Specification	VFD002EL11A

Current - Output	1.6 A
Interface	RS-485
Mounting Type	Chassis Mount, DIN Rail
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Voltage - Supply	115 VAC
Wattage - Load	200 W

Part	Interface	Current - Output	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Supply	Wattage - Load	Mounting Type
Delta Electronics/Industrial Automation VFD002EL11A	RS-485	1.6 A	-10 °C	50 °C	115 VAC	200 W	Chassis Mount DIN Rail
Delta Electronics/Industrial Automation VFD002E21A	RS-485	1.6 A	-10 °C	50 °C	230 VAC	200 W	Chassis Mount DIN Rail
Delta Electronics/Industrial Automation VFD002E11A	RS-485	1.6 A	-10 °C	50 °C	115 VAC	200 W	Chassis Mount DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 240.80

General part information

Variable Frequency Drive 1.6A 200 W Chassis Mount, DIN Rail

Technical documentation and resources

No documents available
