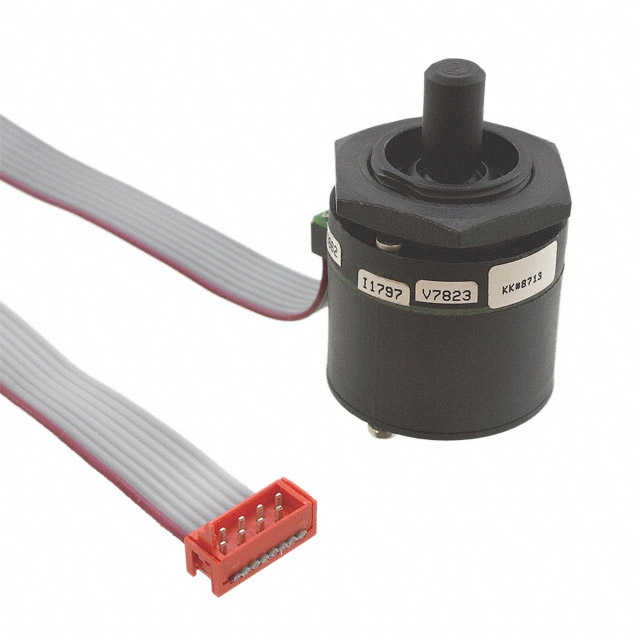

60AD18-8-M-060C
ActiveGrayhill Inc.
SWITCH JOYSTICK FLATTED 10MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
60AD18-8-M-060C
ActiveGrayhill Inc.
SWITCH JOYSTICK FLATTED 10MA 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 60AD18-8-M-060C |
|---|---|
| Actuator Type | Flatted |
| Actuator Type [diameter] | 6.35 mm |
| Current Rating (Amps) | 10 mA |
| Mechanical Life | 500000 Cycles |
| Operating Force | 800 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Digital (Mechanical Switch, Pulse) |
| Panel Cutout Dimensions [diameter] | 17.25 mm |
| Switch Function | 360° Rotational, Center Select, 8-Way Directional |
| Termination Style | Cable with Connector |
| Type | Joystick, 3 - Axis |
| Voltage - Supply | 5 V |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 84.60 | |
| 10 | $ 79.62 | |||
| 25 | $ 77.13 | |||
| 50 | $ 72.16 | |||
| 100 | $ 68.18 | |||
Description
General part information
60AD18 Series
Joystick, 3 - Axis Digital (Mechanical Switch, Pulse) Output
