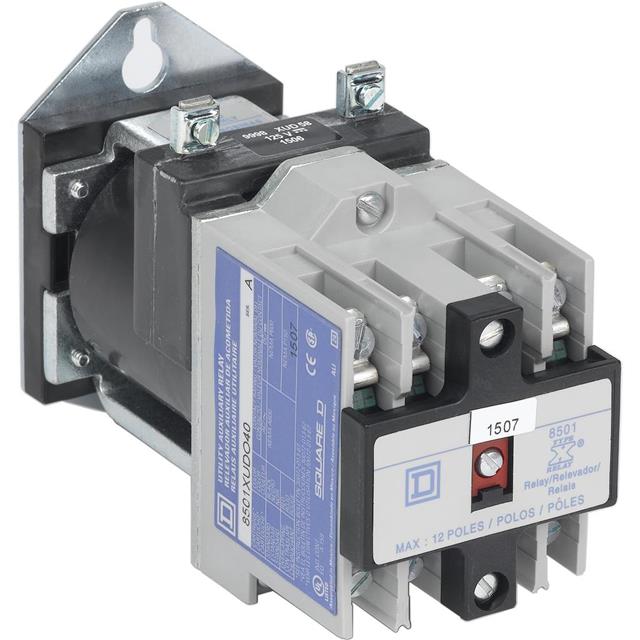

8501XUDO40V53

Active

SQUARE D BY SCHNEIDER ELECTRIC

NEMA CONTROL RELAY, TYPE X, UTIL

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

NEMA CONTROL RELAY, TYPE X, UTIL

Technical Specifications

Parameters and characteristics for this part

Part	Coil Voltage	Mounting Type	Termination Style	Relay Type	Approval Agency	Coil Type	Release Time	Contact Rating (Current)	Switching Voltage	Operate Time	Load - Max Switching [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Contact Form	Load - Max Switching
SQUARE D BY SCHNEIDER ELECTRIC 8501XUDO40V53	24 VDC	Chassis Mount	Screw Terminal	General Purpose	CE CSA UL	Non Latching	21 ms	10 A	250 VDC	37 ms	2500 VA	-40 °C	71 °C	4PST-NO (4 Form A)
SQUARE D BY SCHNEIDER ELECTRIC 8501XUDO80V63	125 VDC	Chassis Mount	Screw Terminal	General Purpose	CE CSA UL	Non Latching	21 ms	10 A	250 VDC	37 ms	2500 VA	-40 °C	71 °C	8PST-NO	8 Form A
SQUARE D BY SCHNEIDER ELECTRIC 8501XUDO40V67	250 VDC	Chassis Mount	Screw Terminal	General Purpose	CE CSA UL	Non Latching	21 ms	10 A	600 VAC	37 ms		-40 °C	71 °C	4PST-NO (4 Form A)		6000 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 390.00

General part information

General Purpose Relay 4PST-NO (4 Form A) 24VDC Coil Chassis Mount
