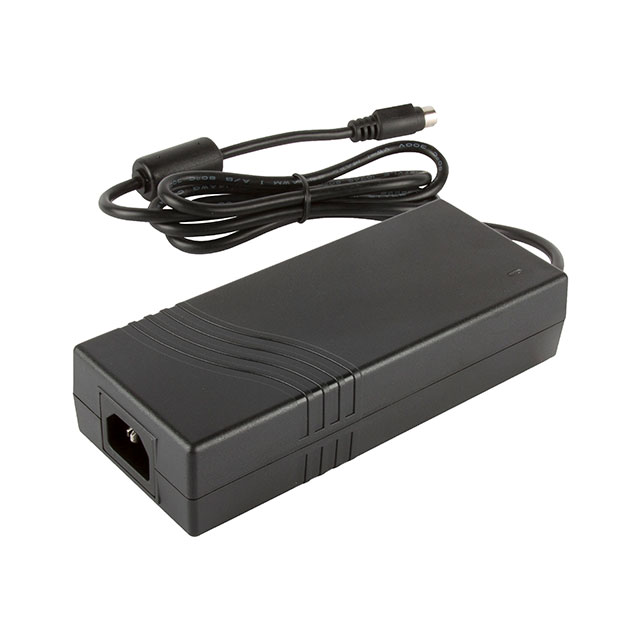

VES255PS24

Obsolete

XP POWER

AC/DC DESKTOP ADAPTER 24V 255W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC DESKTOP ADAPTER 24V 255W

Technical Specifications

Parameters and characteristics for this part

Specification	VES255PS24

Applications	ITE (Commercial)
Approval Agency	CB, CCC, TUV, UL
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	10.63 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output Connector	Rectangular, 8 Position
Power (Watts)	255 W
Region Utilized	International
Size / Dimension [x]	7.77 in
Size / Dimension [x]	197.4 mm
Size / Dimension [y]	3.5 in
Size / Dimension [y]	88.9 mm
Size / Dimension [z]	1.53 in
Size / Dimension [z]	38.9 mm
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	No Load Power Consumption [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Output Connector	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Efficiency	Standard Number	Region Utilized	Current - Output (Max) [Max]	Form	Cord Length	Cord Length	Input Connector
XP POWER VES255PS19	150 mW	3.5 in	7.77 in	1.53 in	197.4 mm	38.9 mm	88.9 mm	255 W	Rectangular 8 Position	CB CCC TUV UL	-10 °C	60 °C	ITE (Commercial)	Cord	90 VAC	264 VAC	19 V	CoC Tier 2 Level VI	62368-1	International	13.42 A	Desktop (Class I)	1.2 m	47.2 in	IEC 320-C14
XP POWER VES255PS24	150 mW	3.5 in	7.77 in	1.53 in	197.4 mm	38.9 mm	88.9 mm	255 W	Rectangular 8 Position	CB CCC TUV UL	-10 °C	60 °C	ITE (Commercial)	Cord	90 VAC	264 VAC	24 V	CoC Tier 2 Level VI	62368-1	International	10.63 A	Desktop (Class I)	1.2 m	47.2 in	IEC 320-C14
XP POWER VES255PS48	150 mW	3.5 in	7.77 in	1.53 in	197.4 mm	38.9 mm	88.9 mm	255 W	Rectangular 8 Position	CB CCC TUV UL	-10 °C	60 °C	ITE (Commercial)	Cord	90 VAC	264 VAC	48 V	CoC Tier 2 Level VI	62368-1	International	5.31 A	Desktop (Class I)	1.2 m	47.2 in	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 255 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
