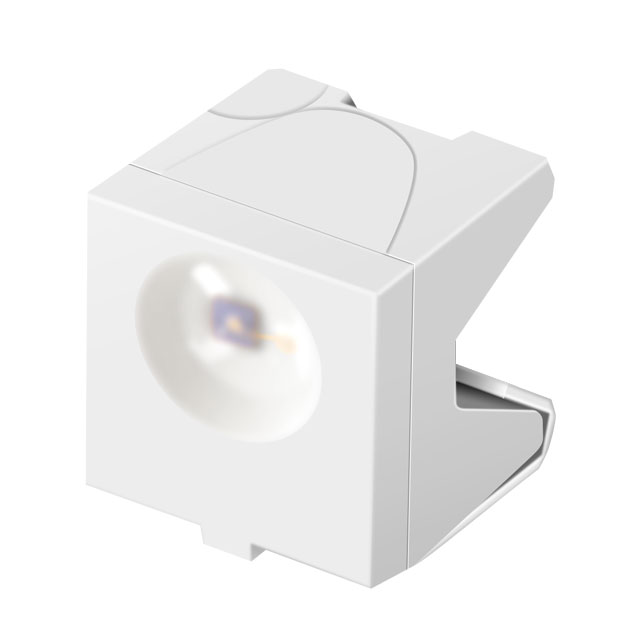

AA4040SYSK

Active

Kingbright

LED YELLOW CLEAR SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AA4040SYSK

Active

Kingbright

LED YELLOW CLEAR SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AA4040SYSK

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	4 mm
Lens Color	Colorless
Lens Size [diameter]	2.4 mm
Lens Transparency	Clear
Millicandela Rating	250 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, Boomerang
Size / Dimension [x]	4 mm
Size / Dimension [y]	3.6 mm
Supplier Device Package	SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	590 nm
Wavelength - Peak	590 nm

AA4040 Series

Part	Supplier Device Package	Lens Transparency	Millicandela Rating	Lens Color	Lens Size [diameter]	Mounting Type	Color	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Current - Test	Package / Case	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Height (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Wavelength - Peak	Height (Max) [Max] [z]	Viewing Angle [custom]	Configuration	Wavelength	Current - Dark (Id) (Max) [Max]	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Kingbright AA4040SRCGKC-R	SMD	Clear	90 mcd 200 mcd	Colorless	2.4 mm	Surface Mount Right Angle	Green Red	655 nm	574 nm	20 mA 20 mA	2-SMD Boomerang	1.85 V 2.1 V	570 nm 640 nm	4.1 mm	4 mm	3.6 mm	120 °
Kingbright AA4040QBC/D	SMD	Clear	150 mcd	Colorless	2.4 mm	Surface Mount Right Angle	Blue			20 mA	2-SMD Boomerang	3.3 V	470 nm		4 mm	3.6 mm		468 nm	4 mm	90 °	Standard
Kingbright AA4040SRSYKCT-R	SMD	Clear	60 mcd	Colorless	2.4 mm	Surface Mount Right Angle	Red			20 mA	2-SMD Boomerang	1.85 V	640 nm		4 mm	3.6 mm	120 °	655 nm	4.25 mm		Standard
Kingbright AA4040SGS	SMD	Clear	30 mcd	Colorless	2.4 mm	Surface Mount Right Angle	Green			20 mA	2-SMD Boomerang	2.2 V	568 nm		4 mm	3.6 mm	120 °	565 nm	4 mm		Standard
Kingbright AA4040P3C-P22						Surface Mount Right Angle					2-SMD Boomerang						120 °					940 nm	100 nA	100 mW	600 µA	Side View	30 V	85 °C	-40 °C
Kingbright AA4040ZGCKT	2-SMD	Clear	800 mcd	Colorless	2.4 mm	Surface Mount Right Angle	Green			20 mA	2-SMD Boomerang	3.3 V	525 nm	4.1 mm	3.6 mm	4 mm	120 °	515 nm			Independent
Kingbright AA4040CGCK	SMD	Clear	70 mcd	Colorless	2.4 mm	Surface Mount Right Angle	Green			20 mA	2-SMD Boomerang	2.1 V	570 nm		4 mm	3.6 mm	120 °		4 mm		Standard
Kingbright AA4040SGC	SMD	Clear	25 mcd	Colorless	2.4 mm	Surface Mount Right Angle	Green			20 mA	2-SMD Boomerang	2.2 V	568 nm		4 mm	3.6 mm		565 nm	4 mm	90 °	Standard
Kingbright AA4040MGS	SMD	Clear	120 mcd	Colorless	2.4 mm	Surface Mount Right Angle	Green			20 mA	2-SMD Boomerang	2.1 V	570 nm		4 mm	3.6 mm	120 °		4 mm		Standard
Kingbright AA4040SYSK	SMD	Clear	250 mcd	Colorless	2.4 mm	Surface Mount Right Angle	Yellow			20 mA	2-SMD Boomerang	2 V	590 nm		4 mm	3.6 mm	120 °	590 nm	4 mm		Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.71
		10	$ 0.42
		100	$ 0.28
	Digi-Reel®	1	$ 0.71
		10	$ 0.42
		100	$ 0.28
	Tape & Reel (TR)	500	$ 0.22
		1000	$ 0.20
		1500	$ 0.20
		2500	$ 0.19
		3500	$ 0.18
		5000	$ 0.17
		12500	$ 0.16
		25000	$ 0.16
		50000	$ 0.15

Description

General part information

AA4040 Series

Yellow 590nm LED Indication - Discrete 2V 2-SMD, Boomerang
