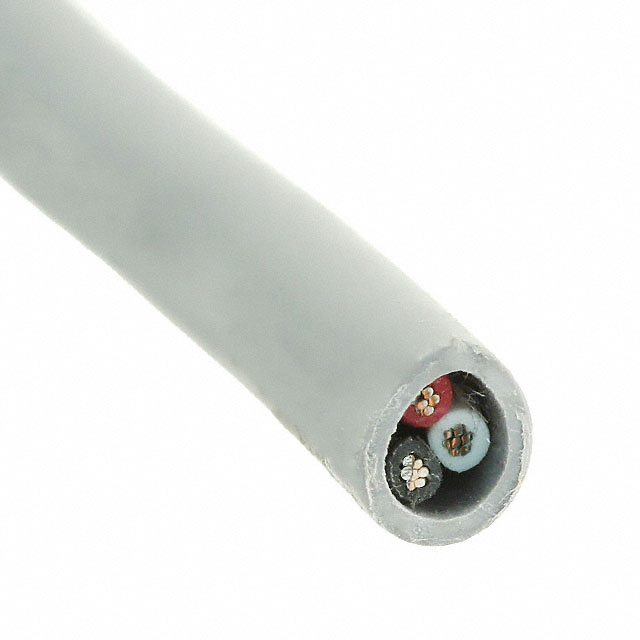

1891/3C SL005

Active

ALPHA WIRE

MULTI-CONDUCTOR CABLE POLYVINYL CHLORIDE 3CONDUCTORS 14AWG 7.59MM 300VAC SLATE POLYVINYL CHLORIDE 30.48M SPOOL

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-CONDUCTOR CABLE POLYVINYL CHLORIDE 3CONDUCTORS 14AWG 7.59MM 300VAC SLATE POLYVINYL CHLORIDE 30.48M SPOOL

Technical Specifications

Parameters and characteristics for this part

Specification	1891/3C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	7.26 mm
Jacket (Insulation) Diameter [diameter]	0.286 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	13.5 AWG

Part	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Usage	Jacket Color	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Length [x]	Length [x]	Conductor Material	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type
ALPHA WIRE 1891/3C SL005	Poly-Vinyl Chloride (PVC)	7.26 mm	0.286 in	3	Communication Control	Slate	13.5 AWG	-20 C	80 C	300 V	30.5 m	100 ft	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.02 in	0.508 mm	41	30 AWG	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 3.50

General part information

3 Conductor Multi-Conductor Cable Slate 14 AWG 100.0' (30.5m)
