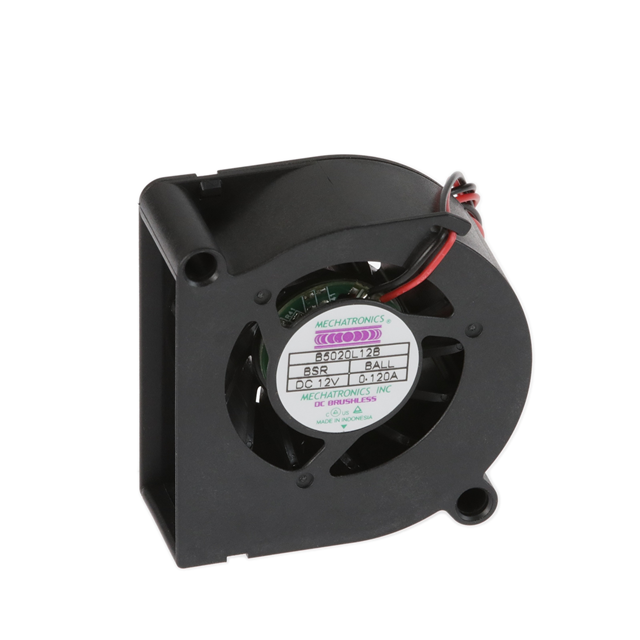

B5020L12B-BSR

Active

Mechatronics Bearing Group

FAN BLOWER 51X20MM 12VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN BLOWER 51X20MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	B5020L12B-BSR

Air Flow	6 CFM
Air Flow	0.168 m³/min
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Blower
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	29 dB(A)
RPM	4000 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	51 mm
Size / Dimension [y]	50 mm
Static Pressure	49.8 Pa
Static Pressure	0.2 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Weight	22.23 g
Weight	0.049 lb
Width [y]	20 mm

Part	Fan Type	RPM	Noise	Bearing Type	Weight	Weight	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Static Pressure	Static Pressure	Termination	Width [y]	Material - Blade	Current Rating (Amps)	Voltage - Rated	Features
Mechatronics Bearing Group B5020L12B-BSR	Blower	4000 RPM	29 dB(A)	Ball	22.23 g	0.049 lb	6 CFM	0.168 m³/min	51 mm	Square/Rounded	50 mm	49.8 Pa	0.2 in H2O	2 Wire Leads	20 mm	Polybutylene Terephthalate (PBT)	120 mA	12 VDC	Thermal Overload Protector (TOP)
Mechatronics Bearing Group B5020L24B-BSR	Blower	4000 RPM	29 dB(A)	Ball	22.23 g	0.049 lb	6 CFM	0.168 m³/min	51 mm	Square/Rounded	50 mm	49.8 Pa	0.2 in H2O	2 Wire Leads	20 mm	Polybutylene Terephthalate (PBT)	0.09 A	24 VDC	Thermal Overload Protector (TOP)
Mechatronics Bearing Group B5020L24F-BSR	Blower	4000 RPM	29 dB(A)	Ball	22.23 g	0.049 lb	6 CFM	0.168 m³/min	51 mm	Square/Rounded	50 mm	49.8 Pa	0.2 in H2O	2 Wire Leads	20 mm	Polybutylene Terephthalate (PBT)	0.09 A	24 VDC	Thermal Overload Protector (TOP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 12VDC Square/Rounded - 51mm L x 50mm H Ball 6.0 CFM (0.168m³/min) 2 Wire Leads
