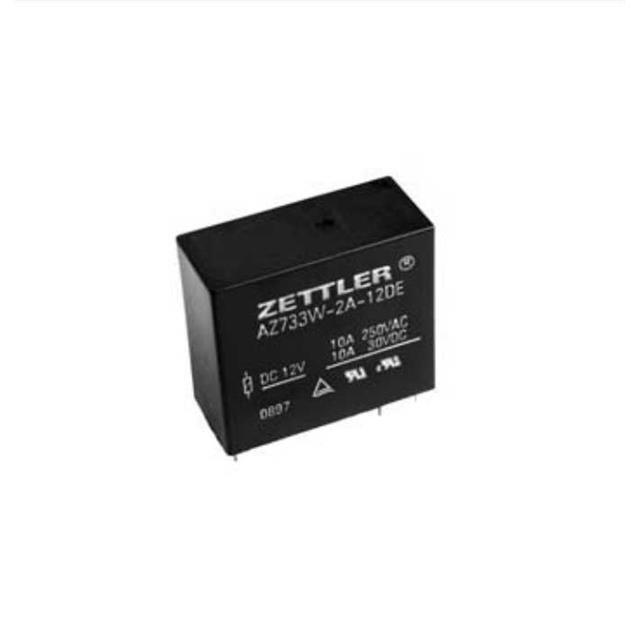

AZ733W-2AE-9DE
ActiveAmerican Zettler
RELAY GEN PURPOSE DPST 12A 9V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZ733W-2AE-9DE
ActiveAmerican Zettler
RELAY GEN PURPOSE DPST 12A 9V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ733W-2AE-9DE |
|---|---|
| Approval Agency | TUV, cUR, UL |
| Coil Current | 89.1 mA |
| Coil Insulation | Class B |
| Coil Resistance | 101 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 9 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 12 A |
| Load - Max Switching | 360 W, 3324 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 6.8 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 277 VAC, 250 VDC |
| Termination Style | PC Pin |
