AT4156B

Active

NKK Switches

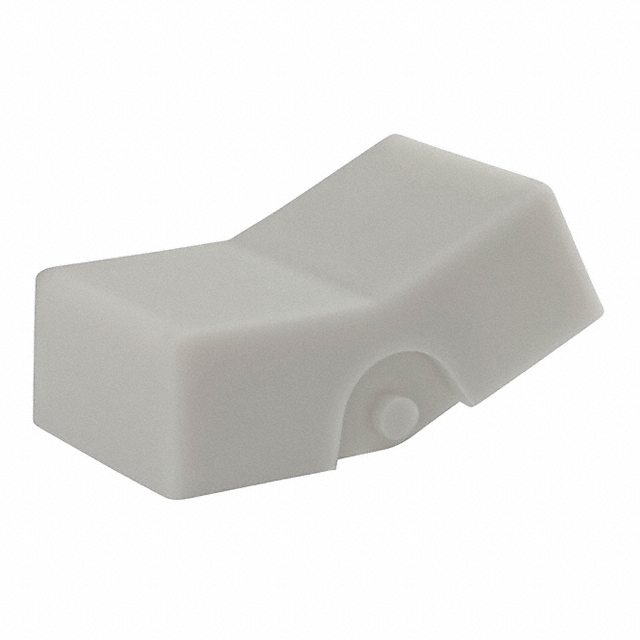

CAP ROCKER RECTANGULAR WHITE

Search across all available documentation for this part.

Active

NKK Switches

CAP ROCKER RECTANGULAR WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	AT4156B

Color	White
For Use With/Related Products	M and P Series
Illumination	Non-Illuminated
Mounting Type	Snap Fit
Shape	Concave, Rectangular
Size [x]	23.01 mm
Size [y]	15.11 mm
Size [z]	8.92 mm
Switch Type	Rocker

Part	Switch Type	Size [y]	Size [x]	Size [z]	For Use With/Related Products	Color	Mounting Type	Shape	Illumination
NKK Switches AT4156B	Rocker	15.11 mm	23.01 mm	8.92 mm	M and P Series	White	Snap Fit	Concave Rectangular	Non-Illuminated
NKK Switches AT4156A	Rocker	15.11 mm	23.01 mm	8.92 mm	M and P Series	Black	Snap Fit	Concave Rectangular	Non-Illuminated
NKK Switches AT4156G	Rocker	15.11 mm	23.01 mm	8.92 mm	M and P Series	Blue	Snap Fit	Concave Rectangular	Non-Illuminated
NKK Switches AT4156F	Rocker	15.11 mm	23.01 mm	8.92 mm	M and P Series	Green	Snap Fit	Concave Rectangular	Non-Illuminated
NKK Switches AT4156H	Rocker	15.11 mm	23.01 mm	8.92 mm	M and P Series	Gray	Snap Fit	Concave Rectangular	Non-Illuminated
NKK Switches AT4156C	Rocker	15.11 mm	23.01 mm	8.92 mm	M and P Series	Red	Snap Fit	Concave Rectangular	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rectangular, Concave Rocker Switch Cap White Snap Fit

Technical documentation and resources
