PST360G2-2AA-C0002-ERA360-05K

Active

Amphenol Piher Sensing Systems

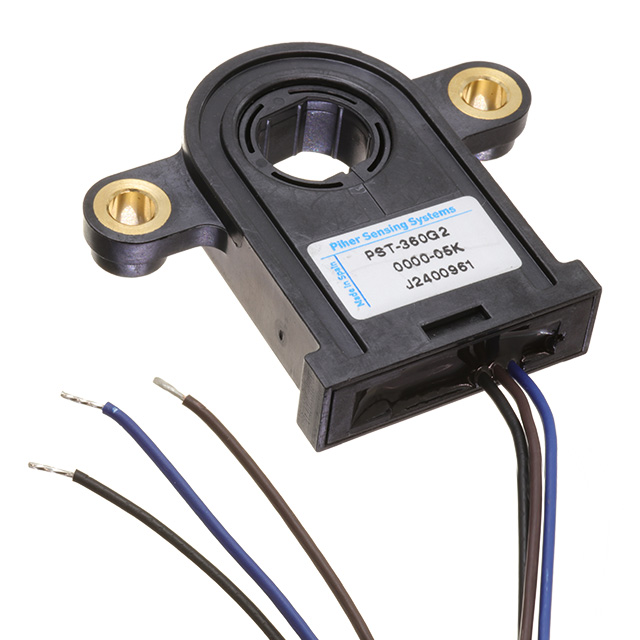

SENSOR ANGLE 360DEG WIRE LEADS

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

SENSOR ANGLE 360DEG WIRE LEADS

Technical Specifications

Parameters and characteristics for this part

Specification	PST360G2-2AA-C0002-ERA360-05K

Actuator Type	Hole for Shaft
For Measuring	Linear, Rotary, Angle
Linearity	1 %
Mounting Type	Chassis Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	Analog Voltage
Output Signal	Clockwise Increase
Package / Case	Box with Wire Leads
Rotation Angle - Electrical, Mechanical [Max]	360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Technology	Hall Effect
Termination Style	Wire Leads
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Output Signal	Rotation Angle - Electrical, Mechanical [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Linearity	For Measuring	Termination Style	Actuator Type	Output	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Piher Sensing Systems PST360G2-2AA-C0002-ERA360-05K	Clockwise Increase	360 °	4.5 V	5.5 V	Hall Effect	1 %	Angle Linear Rotary	Wire Leads	Hole for Shaft	Analog Voltage	Chassis Mount	Box with Wire Leads	125 °C	-40 °C
Amphenol Piher Sensing Systems PST360G2-1A-C0000-ERA360-RE	Clockwise Increase	360 °	7 V	15 V	Hall Effect	1 %	Angle Linear Rotary	Wire Leads	Hole for Shaft	Analog Voltage	Chassis Mount	Box with Wire Leads	125 °C	-40 °C
Amphenol Piher Sensing Systems PST360G2-1A-C0011-ERA090-05K	Clockwise Increase	90 °	4.5 V	5.5 V	Hall Effect	1 %	Angle Linear Rotary	Wire Leads	Hole for Shaft	Analog Voltage	Chassis Mount	Box with Wire Leads	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Angle, Linear, Rotary Hole for Shaft Wire Leads
