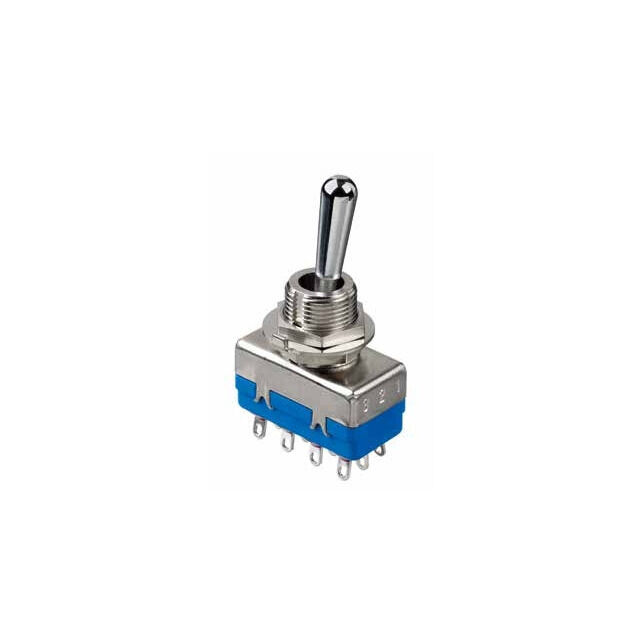

12166A

Active

APEM

TOGGLE SWITCH 12000 HIGH SPEC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

TOGGLE SWITCH 12000 HIGH SPEC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	12166A

Actuator Length [x]	17.3 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	4PDT
Current Rating (Amps)	4 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Actuator Material	Voltage Rating - AC	Voltage Rating - DC	Actuator Length [x]	Switch Function	Circuit	Actuator Type	Illumination	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Features	Termination Style
APEM 12166A	12.5 mm	4 A	Brass Nickel Plated	125 V	30 V	17.3 mm	On-On	4PDT	Standard Round	Non-Illuminated	15/32-32	85 °C	-40 °C	50000 Cycles	Epoxy Sealed Terminals	Solder Lug
APEM 12166KX910	12 mm	3 A	Brass Nickel Plated		60 VDC	17.3 mm	On-On	4PDT	Standard Round	Non-Illuminated	15/32-32	85 °C	-40 °C	10000 Cycles	Epoxy Sealed Terminals Front Panel Sealing	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch 4PDT Panel Mount
